1. Introduce​

1.1 What is a C Mini Program​

C Mini Program is a mini program written in C/C++ language. It is a small program that can be run in the ETStudio. Through the APIs provided by ETStudio, it conveniently implements various functions, such as timers, sending and receiving of CAN and LIN messages, reading and writing of digital signals, analog signals, power control, and system variables.

1.2 Document Introduction​

This document describes the APIs provided by the C Mini Program.

2. Initialization Functions and Main Functions​

2.1 A simple example​

title="./sample.cpp"
#include "BaseMiniProgram.h"

void OnStart()
{
   CAN::Frame frame(0x1F1, 8, CAN::Channel_1::ChannelMappingID);
   for(int i = 0; i < 8; i++) frame.Data(i) = 1;
   frame.Transmit();
}

void OnExit()
{
}

2.2 Return Code Definitions​

typedef enum
{
	ErrCode_Success = 0,
	ErrCode_NullArgument,
	ErrCode_NotImplemented,
	ErrCode_ChannelDisabled,
	ErrCode_DriverNotSupport = 254,
	ErrCode_DriverError = 255,
} KAPI_ErrCode;

2.3 C Mini Program Initialization Functions​

  1. OnStart This function is called once after the C Mini Program starts. You can register periodic functions or timers here.
void OnStart()
{
}
  1. OnExit This function is called when the C Mini Program ends.
void OnExit()
{
}

3. Global variables​

3.1 GetCurrentChannelMappingID​

  • int GetCurrentChannelMappingID();
  • Description
    • The channel mapping ID is used to identify the channel of the current node. The channel mapping ID is set in the ETStudio. alt text

4. Timer​

4.1 start_timer​

void* start_timer(uint64_t interval, boolean onceTimer, void (*onTimer)(void* pTimer));

Description

  • start a timer

parameters

  • interval Timer interval in milliseconds
  • onceTimer
    • TRUE Single-shot timer (auto-stops after timeout)
    • FALSE Continuous timer (auto-restarts after timeout)
  • onTimer Callback function when timer expires

Return

  • void* Timer handle

usage

// create a 1 second timer
void onTimer(void* pTimer)
{
	// Do something
}
start_timer(1000, FALSE, onTimer);

4.2 stop_timer​

void stop_timer(void* pTimer);

Description

  • stop a timer

parameters

  • pTimer Timer handle returned by start_timer

usage

void onTimer(void* pTimer)
{
	// Do something
}
void* timer = start_timer(1000, FALSE, onTimer);
...
stop_timer(timer);

5. System Variables​

5.1 Access System Variables​

  1. Create System Variables in the ETStudio System Variables Interface
    • alt text
  2. Read System variable value
    int32_t varValue = namespace_example::int32value;
  3. Set the System variable value
    namespace_example::int32value = 30;

5.2 SetOnChange​

void SetOnChange(void (*onChange)())

Description

  • Register a callback function when the system variable changes

parameters

  • onChange Callback function when system variable changes

Usage

void on_namespace_example_int32valueChange()
{
    int32_t varValue = namespace_example::int32value;
}
void OnStart()
{
    namespace_example::int32value.SetOnChange(on_namespace_example_int32valueChange);
}

Note: In the current version, newly created or modified system variables may not be recognized by Code Editor. If new system variables are not detected in Code Editor, please restart ETStudio.

6. Send messages defined in DBC or LDF files via the interface​

6.1 Send Frame​

  1. void Transmit();

Description

  • Send a CAN, CAN FD, or LIN frame based on the Simulation Node configuration.

Usage

  • Assume we have imported a dbc/ldf file into the Simulation Network LIN/CANBus, which contains a message named Gateway_1. The following code can be used to send this CAN, CAN FD, or LIN message.
CANBus::Gateway_1 msg;
msg.Gear = 1;
msg.EngineRunning = 2;
msg.Ig_15 = 3;
msg.Ig_15R = 4;
msg.StarterKey = 5;
msg.Transmit();
  • Send a message to the specified Channel Mapping ID
CANBus::Gateway_1 msg(2);
msg.Gear = 1;
msg.EngineRunning = 2;
msg.Ig_15 = 3;
msg.Ig_15R = 4;
msg.StarterKey = 5;
msg.Transmit();
  • Send a message to the specified BusType (BUS_TYPE_CAN)
CANBus::Gateway_1 msg;
msg.Gear = 1;
msg.EngineRunning = 2;
msg.Ig_15 = 3;
msg.Ig_15R = 4;
msg.StarterKey = 5;
msg.BusType = BUS_TYPE_CAN;
msg.Transmit();
  • CANBus is the name of the Simulation Network
  • Gateway_1 is the name of the frame.
  • BusType BUS_TYPE_CAN, BUS_TYPE_CANFD, BUS_TYPE_LIN
  1. void TransmitHeader();

Description

  • Send a LIN header frame based on the Simulation Node configuration.

Usage

  • Assume we have imported a ldf file into the Simulation Network LINBus, which contains a message named LIN_Test_message. The following code can be used to send a LIN header.
LINBus::LIN_Test_message msg;
msg.TransmitHeader();
  • LINBus is the name of the Simulation Network
  • LIN_Test_message is the name of the LIN frame.

6.2 Send Frame with Signal Value Set by Panel​

static int StaticTransmit(int channelMappingID = 0);

Description

  • Send a CAN, CAN FD, or LIN frame based on the Simulation Node configuration.
  • The difference from Send Frame is that the signals in the message are configured via Panel.alt text

parameters

  • channelMappingID CAN channel ID, 0 means the default channel ID of the current node
  • busType BUS_TYPE_CAN, BUS_TYPE_CANFD or BUS_TYPE_LIN

Usage

CANBus::Gateway_1::StaticTransmit();
  • CANBus is the name of the Simulation Network
  • Gateway_1 is the name of the frame.

6.3 receive frame​

void on_recv_message(<NetworkName>::<FrameName> *msg)

Description

  • Register a callback function when the CAN, CANFD or LIN frame is received.

parameters

  • msg Pointer to the received frame, the type of the pointer is determined by the dbc/ldf file imported into the Simulation Network.

Usage

void on_recv_message(CANBus::Gateway_1 *msg)
{
    // Do something
}
void OnStart()
{
  CANBus::Gateway_1::OnMessage = on_recv_message;
  CANBus::Gateway_1::OnTxMessage = on_recv_message;
  CANBus::Gateway_1::OnPreMessage = on_recv_message;
  CANBus::Gateway_1::OnUrgentMessage = on_recv_message;
}
  • CANBus is the name of the Simulation Network
  • Gateway_1 is the name of the frame.

7. Frame​

7.1 Register a message​

7.1.1 Register a CAN/LIN message​

Frame(uint32_t frameID, uint32_t frameDataLen, uint32_t channelMappingID);

Description

  • define a CAN/LIN message

parameters

  • frameID Message ID
  • frameDatalen Message length
  • channelMappingID channel ID, 0 means the default channel ID of the current node

Usage

CAN::Frame frame(0x1F1, 8, CAN::Channel_1::ChannelMappingID);

LIN::Frame frame(0x3C, 8,LIN::Channel_1::ChannelMappingID);
  • If you need to register a message for all channels, refer to the following example.

Usage

CAN::Frame frame(0x1F1, 0, 0xFFFFFFFFL);

7.1.2 Register a UDP message​

Frame(uint32_t frameDataLen, uint32_t channelMappingID, UDPNodeInfo nodeInfo);

Description

  • define a UDP message

parameters

  • frameDatalen Message length
  • channelMappingID channel ID, 0 means the default channel ID of the current node
  • nodeInfo UDP node network information

Usage

Ethernet::UDPNodeInfo nodeInfo;
nodeInfo.setSrcMac( 1, 2, 3, 4, 5, 6 )
        .setSrcIp( 127, 0, 0, 1 )
        .setSrcPort(11)
        .setDstMac( 1, 2, 3, 4, 5, 6 )
        .setDstIp( 192, 168, 0, 1 )
        .setDstPort(29)
        .setTtl(64)
        .setVlan(129);
Ethernet::Frame frame(8, Ethernet::Channel_1::ChannelMappingID, nodeInfo);

7.2 Modify the registered signal data​

Description

  • After defining a signal, you can modify the signal data in the following two ways.

Usage

// Method 1
CAN::Frame frame(0x1F1, 8, CAN::Channel_1::ChannelMappingID);
for (int i = 0; i < 8; i++) frame.Data(i) = 1;//Modify the value of the byte

// Method 2
CAN::Frame frame(0x1F1, 8, CAN::Channel_1::ChannelMappingID);
uint8_t* dataBuf = frame.Data();//Get the start pointer
for (int i = 0; i < 8; i++) dataBuf[i] = 1;

7.3 Send the signal​

  • If only the frame header needs to be sent, refer to the following code.

Usage

LIN::Frame frame(0x3C, 8, LIN::Channel_1::ChannelMappingID);
for (int i = 0; i < 8; i++) frame.Data(i) = 1;
frame.TransmitHeader();
  • If you need to send the complete signal, refer to the following code.

Usage

CAN::Frame frame(0x1F1, 8, CAN::Channel_1::ChannelMappingID);
for (int i = 0; i < 8; i++) frame.Data(i) = 1;
frame.Transmit();

7.4 Get timestamp​

  • If you need to get the timestamp, refer to the following code.

Usage

void CAN_OnMessage(CAN::Frame* msg)
{
  char buf[255];
  uint64_t current_time = msg->GetFrameTimestamp();
  sprintf(buf, "Receive Callback:timestamp=%d", current_time);
  show_console_message(buf);
}
CAN::OnMessage = CAN_OnMessage;

7.5 Variable information in the Frame​

parameters

  • _channelMappingID Logical channel mapping ID of the frame

    Usage

    void CAN_OnMessage(CAN::Frame* msg)
    {
     char buf[255];
     sprintf(buf, "Receive Callback:channelMappingID=%d", msg->_channelMappingID);
     show_console_message(buf);
    }
    CAN::OnMessage = CAN_OnMessage;

  • _frameID CAN frame ID (including standard/extended ID)

    Usage

    void CAN_OnMessage(CAN::Frame* msg)
    {
     char buf[255];
     sprintf(buf, "Receive Callback:frameID=0x%X", msg->_frameID);
     show_console_message(buf);
    }
    CAN::OnMessage = CAN_OnMessage;

  • BusType Type of the bus where the frame is transmitted

    If you want to send a generic CAN message on a CAN FD channel, refer to the following code.

    Usage

    CAN::Frame frame(0x1F1, 8, CAN::Channel_1::ChannelMappingID);
    for (int i = 0; i < 8; i++) frame.Data(i) = 1;
    frame.BusType = BUS_TYPE_CAN;
    frame.Transmit();

  • Channel Physical hardware channel number

    Usage

    void CAN_OnMessage(CAN::Frame* msg)
    {
     char buf[255];
     sprintf(buf, "Receive Callback:Channel=%d", msg->Channel);
     show_console_message(buf);
    }
    CAN::OnMessage = CAN_OnMessage;

  • Dir Frame direction (receive = 0, transmit = 1)

    Usage

    void CAN_OnTxMessage(CAN::Frame* msg)
    {
      char buf[255];
      sprintf(buf, "Transmit Complete Callback:Dir =%s", msg->Dir == 1 ? "Tx" : "Rx");
      show_console_message(buf);
    }
    CAN::OnTxMessage = CAN_OnTxMessage;

  • ExtendedFrame Frame ID format flag (0 = Standard Frame with 11-bit ID, 1 = Extended Frame with 29-bit ID)

    Usage

    void CAN_OnMessage(CAN::Frame* msg)
    {
      char buf[255];
      sprintf(buf, "Receive Callback:ExtendedFrame =%d", msg->ExtendedFrame);
      show_console_message(buf);
    }
    CAN::OnMessage = CAN_OnMessage;

  • Dlc Data length code of the frame (CAN: 0-8, CAN FD: 0-15)

    Usage

    void CAN_OnMessage(CAN::Frame* msg)
    {
      char buf[255];
      sprintf(buf, "Receive Callback:Dlc =%d", msg->Dlc);
      show_console_message(buf);
    }
    CAN::OnMessage = CAN_OnMessage;

  • DataLength Actual valid data length of the frame

    Usage

    void CAN_OnMessage(CAN::Frame* msg)
    {
      char buf[255];
      sprintf(buf, "Receive Callback:DataLength =%d", msg->DataLength);
      show_console_message(buf);
    }
    CAN::OnMessage = CAN_OnMessage;

  • Reserved Reserved field (fill with fixed value 0, reserved for protocol compatibility and future function expansion)

  • RtrFrame Remote frame flag (0 = Data Frame, 1 = Remote Transmission Request Frame)

8. CAN / CANFD​

Type definitions

typedef struct
{
	uint32_t timestamp_us;
	uint8_t bus_type;
	uint8_t event_type;
	uint8_t channel;
	uint8_t dir;
	uint8_t dlc;
	uint8_t extended_frame;
	uint8_t subDeviceNumber;
	uint8_t reserved;
	uint32_t id;
	uint8_t data[64];
} EM_ReceiveFrame_t;

typedef struct
{
	uint32_t can_id;
	bool rtr_frame;
	bool extended_frame;
	uint8_t can_dlc;
	uint8_t channel;
	uint8_t data[64];
	uint32_t timestamp_us;
} EM_CANSendFrame_t;

8.1 Send CAN Frame​

Description

  • Send a CAN frame

8.1.1 CAN_Tx​

Note: This legacy API is not recommended for further use. We recommend using the format of 8.1.2.

KAPI_ErrCode CAN_Tx(uint32_t channelMappingID, uint32_t id, uint8_t dlc, uint8_t* data);

parameters

  • channelMappingID CAN channel ID, 0 means the default channel ID of the current node
  • id CAN ID
  • dlc Data Length Code
  • data Pointer to data buffer

Return

  • 0 Success
  • Other Failed

Usage

uint8_t data[8] = {0x01, 0x02, 0x03, 0x04, 0x05, 0x06, 0x07, 0x08};
CAN_Tx(0, 0x123, 8, data);

8.1.2 CAN::Frame frame​

Usage

CAN::Frame frame(0x1F1, 8, CAN::Channel_1::ChannelMappingID);
for (int i = 0; i < 8; i++) frame.Data(i) = 1;
frame.Transmit();
CAN::Frame frame(0x1F1, 8, CAN::Channel_1::ChannelMappingID);
uint8_t* dataBuf = frame.Data();
for (int i = 0; i < 8; i++) dataBuf[i] = 1;
frame.Transmit();

Note: If you want to send a CAN FD frame, you can go to Device -> Channel Settings to set Mode to CAN FD and modify frameDatalen to the corresponding value.

Usage

CAN::Frame frame(0x1F1, 12, CAN::Channel_1::ChannelMappingID);
for (int i = 0; i < 12; i++) frame.Data(i) = 1;
frame.Transmit();

8.2 Register CAN Receive Callback​

Description

  • Register a callback function when a CAN frame is received

8.2.1 register_CANRxEvent​

Note: This legacy API is not recommended for further use. We recommend using the format of 8.2.2.

KAPI_ErrCode register_CANRxEvent(uint32_t channelMappingID, uint32_t id, ReceiveFrameHandler callback);

parameters

  • channelMappingID CAN channel ID, 0 means the default channel ID of the current node
  • id CAN ID to filter
  • callback Receive frame handler (typedef void (ReceiveFrameHandler)(EM_ReceiveFrame_t const))

Return

  • 0 Success
  • Other Failed

Usage

void onCANRx(EM_ReceiveFrame_t const* frame)
{
	// Do something
}

uint32_t channelMappingID = 0;
uint32_t id = 0x123;
register_CANRxEvent(channelMappingID, id, onCANRx);

8.2.2 CAN::OnMessage​

Usage

void CAN_OnMessage(CAN::Frame* msg)
{
	// Do something
}
CAN::OnMessage = CAN_OnMessage;//All frames on all CAN channels will trigger the CAN_OnMessage callback function

CAN::Channel_1::OnMessage = CAN_OnMessage;//All frames on CAN Channel 1 will trigger the CAN_OnMessage callback function

CAN::Frame frame(0x101, 0, CAN::Channel_1::ChannelMappingID);
frame.OnMessage = CAN_OnMessage;//The 0x101 frame on CAN Channel 1 will trigger the CAN_OnMessage callback function

CAN::Frame frame(0x101, 0, 0xFFFFFFFFL);
frame.OnMessage = CAN_OnMessage;//The 0x101 frame on all CAN channels will trigger the CAN_OnMessage callback function

Note: The format of the CAN FD receive callback is the same as that of CAN.

8.3 Register CAN Transmission Complete Callback​

Description

  • Register a callback function when a CAN frame is transmitted

8.3.1 register_CANTxEvent​

Note: This legacy API is not recommended for further use. We recommend using the format of 8.3.2.

KAPI_ErrCode register_CANTxEvent(uint32_t channelMappingID, uint32_t id, CANSendFrameHandler callback);

parameters

  • channelMappingID CAN channel ID, 0 means the default channel ID of the current node
  • id CAN ID to filter
  • callback Transmission complete handler (typedef void (CANSendFrameHandler)(EM_CANSendFrame_t))

Return

  • 0 Success
  • Other Failed

Usage

void onCANTx(EM_CANSendFrame_t* frame)
{
	// Do something
}
uint32_t channelMappingID = 0;
uint32_t id = 0x123;
register_CANTxEvent(channelMappingID, id, onCANTx);

8.3.2 CAN::OnTxMessage​

Usage

void CAN_OnTxMessage(CAN::Frame* msg)
{
	// Do something
}
CAN::OnTxMessage = CAN_OnTxMessage;//All frames on all CAN channels will trigger the CAN_OnTxMessage callback function

CAN::Channel_1::OnTxMessage = CAN_OnTxMessage;//All frames on CAN Channel 1 will trigger the CAN_OnTxMessage callback function

CAN::Frame frame(0x101, 0, CAN::Channel_1::ChannelMappingID);
frame.OnTxMessage = CAN_OnTxMessage;//The 0x101 frame on CAN Channel 1 will trigger the CAN_OnTxMessage callback function

CAN::Frame frame(0x101, 0, 0xFFFFFFFFL);
frame.OnTxMessage = CAN_OnTxMessage;//The 0x101 frame on all CAN channels will trigger the CAN_OnTxMessage callback function

Note: The format of the CAN FD transmission completion callback is the same as that of CAN.

8.4 Register CAN Pre-Transmission Callback​

Description

  • Register a callback function when a CAN frame is about to be transmitted

8.4.1 register_CANPreTxEvent​

Note: This legacy API is not recommended for further use. We recommend using the format of 8.4.2.

KAPI_ErrCode register_CANPreTxEvent(uint32_t channelMappingID, uint32_t id, CANSendFrameHandler callback);

parameters

  • channelMappingID CAN channel ID, 0 means the default channel ID of the current node
  • id CAN ID to filter
  • callback Pre-transmission handler (typedef void (CANSendFrameHandler)(EM_CANSendFrame_t))

Return

  • 0 Success
  • Other Failed

Usage

void onCANPreTx(EM_CANSendFrame_t* frame)
{
	// Do something
}
uint32_t channelMappingID = 0;
uint32_t id = 0x123;
register_CANPreTxEvent(channelMappingID, id, onCANPreTx);

8.4.2 CAN::OnPreTxMessage​

Usage

void CAN_OnPreTxMessage(CAN::Frame* msg)
{
  	// Do something
}
CAN::OnPreTxMessage = CAN_OnPreTxMessage;//All frames on all CAN channels will trigger the CAN_OnPreTxMessage callback function

CAN::Channel_1::OnPreTxMessage = CAN_OnPreTxMessage;//All frames on CAN Channel 1 will trigger the CAN_OnPreTxMessage callback function

CAN::Frame frame(0x101, 0, CAN::Channel_1::ChannelMappingID);
frame.OnPreTxMessage = CAN_OnPreTxMessage;//The 0x101 frame on CAN Channel 1 will trigger the CAN_OnPreTxMessage callback function

CAN::Frame frame(0x101, 0, 0xFFFFFFFFL);
frame.OnPreTxMessage = CAN_OnPreTxMessage;//The 0x101 frame on all CAN channels will trigger the CAN_OnPreTxMessage callback function

Note: The format of the CAN FD pre-transmission callback is the same as that of CAN.

8.5 Register CAN Urgent Transmission Callback​

Description

  • Register a callback function when a high-priority urgent CAN frame needs to be processed(prior to normal CAN frame transmission/reception)

8.5.1 register_CANRxUrgentEvent​

Note: This legacy API is not recommended for further use. We recommend using the format of 8.5.2.

KAPI_ErrCode register_CANRxUrgentEvent(uint32_t channelMappingID, uint32_t id, CANSendFrameHandler callback);

parameters

  • channelMappingID CAN channel ID, 0 means the default channel ID of the current node
  • id CAN ID to filter
  • callback Urgent frame handler (typedef void (CANSendFrameHandler)(EM_CANSendFrame_t))

Return

  • 0 Success
  • Other Failed

Usage

void onCANUrgent(EM_CANSendFrame_t* frame)
{
	// Do something
}
uint32_t channelMappingID = 0;
uint32_t id = 0x123;
register_CANRxUrgentEvent(channelMappingID, id, onCANUrgent);

8.5.2 CAN::OnUrgentMessage​

Usage

void CAN_OnUrgentMessage(CAN::Frame* msg)
{
  	// Do something
}
CAN::OnUrgentMessage = CAN_OnUrgentMessage;//All frames on all CAN channels will trigger the CAN_OnUrgentMessage callback function

CAN::Channel_1::OnUrgentMessage = CAN_OnUrgentMessage;//All frames on CAN Channel 1 will trigger the CAN_OnUrgentMessage callback function

CAN::Frame frame(0x101, 0, CAN::Channel_1::ChannelMappingID);
frame.OnUrgentMessage = CAN_OnUrgentMessage;//The 0x101 frame on CAN Channel 1 will trigger the CAN_OnUrgentMessage callback function

CAN::Frame frame(0x101, 0, 0xFFFFFFFFL);
frame.OnUrgentMessage = CAN_OnUrgentMessage;//The 0x101 frame on all CAN channels will trigger the CAN_OnUrgentMessage callback function

Note: The format of the CAN FD urgent callback is the same as that of CAN. OnUrgentMessage can be triggered by both Rx(receive) and Tx(transmit) messages. There is no priority relationship whatsoever between OnMessage and OnUrgentMessage. That is, if both callbacks are registered, there will be no scenario where the high-priority callback is invoked while the low-priority one is not executed.

8.6 Register CAN Error Transmission Callback​

Description

  • Register a callback function that will be triggered when a CAN frame transmission error occurs(such as bus off), enabling real-time monitoring and handling of CAN bus transmission error events.

Usage

void CAN_OnErrorMessage(CAN::Frame* msg)
{
  	// Do something
}
CAN::OnErrorMessage = CAN_OnErrorMessage;//All frames on all CAN channels will trigger the CAN_OnErrorMessage callback function

CAN::Channel_1::OnErrorMessage = CAN_OnErrorMessage;//All frames on CAN Channel 1 will trigger the CAN_OnErrorMessage callback function

CAN::Frame frame(0x101, 0, CAN::Channel_1::ChannelMappingID);
frame.OnErrorMessage = CAN_OnErrorMessage;//The 0x101 frame on CAN Channel 1 will trigger the CAN_OnErrorMessage callback function

CAN::Frame frame(0x101, 0, 0xFFFFFFFFL);
frame.OnErrorMessage = CAN_OnErrorMessage;//The 0x101 frame on all CAN channels will trigger the CAN_OnErrorMessage callback function

Note: The format of the CAN FD error frame callback is the same as that of CAN.

8.7 CAN Message Reception Priority​

Description

  • For the same CAN message, if multiple callbacks are registered for it, the high-priority callback will be invoked while the low-priority ones will not be executed.

Usage

// highest priority
CANBus::Gateway_1::OnTxMessage  = CAN_OnTxMessage;

// second-highest priority
CAN::Frame frame(0x101, 0, CAN::Channel_1::ChannelMappingID); frame.OnTxMessage = CAN_OnTxMessage;

// third-highest priority
CAN::Channel_1::OnTxMessage = CAN_OnTxMessage;

// lowest priority
CAN::Frame frame(0x101, 0, 0xFFFFFFFFL); frame.OnTxMessage = CAN_OnTxMessage;

9. LIN​

Type definition

typedef struct
{
	uint8_t lin_head;
	uint8_t lin_dlc;
	uint8_t channel;
	uint8_t data[8];
	uint32_t timestamp_us;
} EM_LINSendFrame_t;

9.1 LIN Master Send Header​

Note: This legacy API is not recommended for further use. We recommend using the format of 9.2.2

KAPI_ErrCode LinMaster_TxHeader(uint32_t channelMappingID, uint8_t header);

Description

  • Send a LIN header

parameters

  • channelMappingID LIN channel ID, 0 means the default channel ID of the current node
  • header LIN header

Return

  • 0 Success
  • Other Failed

Usage

LinMaster_TxHeader(0, 0x3C);

9.2 LIN Master Send Header and Data​

Description

  • Send a LIN frame

9.2.1 LinMaster_Tx​

Note: This legacy API is not recommended for further use. We recommend using the format of 9.2.2.

KAPI_ErrCode LinMaster_Tx(uint32_t channelMappingID, uint8_t header, uint8_t dlc, uint8_t* data);

parameters

  • channelMappingID LIN channel ID, 0 means the default channel ID of the current node
  • header LIN header
  • dlc Data Length Code
  • data Pointer to data buffer

Return

  • 0 Success
  • Other Failed

Usage

uint8_t data[8] = {0x01, 0x02, 0x03, 0x04, 0x05, 0x06, 0x07, 0x08};
LinMaster_Tx(0, 0x3C, 8, data);

9.2.2 LIN::Frame frame​

Usage

LIN::Frame frame(0x3C, 8, LIN::Channel_1::ChannelMappingID);
for (int i = 0; i < 8; i++) frame.Data(i) = 1;
frame.Transmit();//Transmit Header and Data

frame.TransmitHeader();//Transmit Header

9.3 Register LIN Master Receive Callback​

Description

  • Register a callback function when a LIN frame is received

9.3.1 register_LinMasterRxEvent​

Note: This legacy API is not recommended for further use. We recommend using the format of 9.3.2.

KAPI_ErrCode register_LinMasterRxEvent(uint32_t channelMappingID, uint8_t header, ReceiveFrameHandler callback);

parameters

  • channelMappingID LIN channel ID, 0 means the default channel ID of the current node
  • header LIN header to filter
  • callback Receive frame handler (typedef void (ReceiveFrameHandler)(EM_ReceiveFrame_t const))

Return

  • 0 Success
  • Other Failed

Usage

void onLinMasterRx(EM_ReceiveFrame_t const* frame)
{
	// Do something
}

uint32_t channelMappingID = 0;
uint8_t header = 0x3C;
register_LinMasterRxEvent(channelMappingID, header, onLinMasterRx);

9.3.2 lIN::OnMessage​

Usage

void LIN_OnMessage(LIN::Frame* msg)
{
	// Do something
}
lIN::OnMessage = LIN_OnMessage;//All frames on all LIN channels will trigger the LIN_OnMessage callback function

LIN::Channel_1::OnMessage = LIN_OnMessage;//All frames on LIN Channel 1 will trigger the LIN_OnMessage callback function

LIN::Frame frame(0x3C, 0, LIN::Channel_1::ChannelMappingID);
frame.OnMessage = LIN_OnMessage;//The 0x3C frame on LIN Channel 1 will trigger the LIN_OnMessage callback function

LIN::Frame frame(0x3C, 0, 0xFFFFFFFFL);
frame.OnMessage = LIN_OnMessage;//The 0x3C frame on all LIN channels will trigger the LIN_OnMessage callback function

9.4 Register LIN Master Transmission Callback​

Description

  • Register a callback function when a LIN frame is transmitted

9.4.1 register_LinMasterTxEvent​

Note: This legacy API is not recommended for further use. We recommend using the format of 9.4.2.

KAPI_ErrCode register_LinMasterTxEvent(uint32_t channelMappingID, uint8_t header, LINSendFrameHandler callback);

parameters

  • channelMappingID LIN channel ID, 0 means the default channel ID of the current node

  • header LIN header to filter

  • callback Transmission complete handler (typedef void (LINSendFrameHandler)(EM_LINSendFrame_t))

Return

  • 0 Success
  • Other Failed

Usage

void onLinMasterTx(EM_LINSendFrame_t* frame)
{
	// Do something
}

uint32_t channelMappingID = 0;
uint8_t header = 0x3C;
register_LinMasterTxEvent(channelMappingID, header, onLinMasterTx);

9.4.2 LIN::OnTxMessage​

Usage

void LIN_OnTxMessage(LIN::Frame* msg)
{
	// Do something
}
lIN::OnTxMessage = LIN_OnTxMessage;//All frames on all LIN channels will trigger the LIN_OnTxMessage callback function

LIN::Channel_1::OnTxMessage = LIN_OnTxMessage;//All frames on LIN Channel 1 will trigger the LIN_OnTxMessage callback function

LIN::Frame frame(0x3C, 0, LIN::Channel_1::ChannelMappingID);
frame.OnTxMessage = LIN_OnTxMessage;//The 0x3C frame on LIN Channel 1 will trigger the LIN_OnTxMessage callback function

LIN::Frame frame(0x3C, 0, 0xFFFFFFFFL);
frame.OnTxMessage = LIN_OnTxMessage;//The 0x3C frame on all LIN channels will trigger the LIN_OnTxMessage callback function

9.5 Register LIN Master Pre-Transmission Callback​

Description

  • Register a callback function when a LIN frame is about to be transmitted

9.5.1 register_LinMasterPreTxEvent​

Note: This legacy API is not recommended for further use. We recommend using the format of 9.5.2.

KAPI_ErrCode register_LinMasterPreTxEvent(uint32_t channelMappingID, uint8_t header, LINSendFrameHandler callback);

parameters

  • channelMappingID LIN channel ID, 0 means the default channel ID of the current node
  • header LIN header to filter
  • callback Pre-transmission handler (typedef void (LINSendFrameHandler)(EM_LINSendFrame_t))

Return

  • 0 Success
  • Other Failed

Usage

void onLinMasterPreTx(EM_LINSendFrame_t* frame)
{
	// Do something
}

uint32_t channelMappingID = 0;
uint8_t header = 0x3C;
register_LinMasterPreTxEvent(channelMappingID, header, onLinMasterPreTx);

9.5.2 lIN::OnPreTxMessage​

Usage

void LIN_OnPreTxMessage(LIN::Frame* msg)
{
	// Do something
}
LIN::OnPreTxMessage = LIN_OnPreTxMessage;//All frames on all LIN channels will trigger the LIN_OnPreTxMessage callback function

LIN::Channel_1::OnPreTxMessage = LIN_OnPreTxMessage;//All frames on LIN Channel 1 will trigger the LIN_OnPreTxMessage callback function

LIN::Frame frame(0x3C, 0, LIN::Channel_1::ChannelMappingID);
frame.OnPreTxMessage = LIN_OnPreTxMessage;//The 0x3C frame on LIN Channel 1 will trigger the LIN_OnPreTxMessage callback function

LIN::Frame frame(0x3C, 0, 0xFFFFFFFFL);
frame.OnPreTxMessage = LIN_OnPreTxMessage;//The 0x3C frame on all LIN channels will trigger the LIN_OnPreTxMessage callback function

9.6 Register LIN Urgent Transmission Callback​

Description

  • Register a callback function when a high-priority urgent LIN frame needs to be processed(prior to normal LIN frame transmission/reception)

Usage

  void LIN_OnUrgentMessage(LIN::Frame* msg)
  {
  	// Do something
  }
  LIN::OnUrgentMessage = LIN_OnUrgentMessage;//All frames on all LIN channels will trigger the LIN_OnUrgentMessage callback function

  LIN::Channel_1::OnUrgentMessage = LIN_OnUrgentMessage;//All frames on LIN Channel 1 will trigger the LIN_OnUrgentMessage callback function

  LIN::Frame frame(0x3C, 0, LIN::Channel_1::ChannelMappingID);
  frame.OnUrgentMessage = LIN_OnUrgentMessage;//The 0x3C frame on LIN Channel 1 will trigger the LIN_OnUrgentMessage callback function

  LIN::Frame frame(0x3C, 0, 0xFFFFFFFFL);
  frame.OnUrgentMessage = LIN_OnUrgentMessage;//The 0x3C frame on all LIN channels will trigger the LIN_OnUrgentMessage callback function

9.7 Register LIN Error Transmission Callback​

Description

  • Register a callback function that will be triggered when a LIN frame transmission error occurs(such as LIN bus off), enabling real-time monitoring and handling of LIN bus transmission error events.

Usage

  void LIN_OnErrorMessage(LIN::Frame* msg)
  {
  	// Do something
  }
  LIN::OnErrorMessage = LIN_OnErrorMessage;//All frames on all LIN channels will trigger the LIN_OnErrorMessage callback function

  LIN::Channel_1::OnErrorMessage = LIN_OnErrorMessage;//All frames on LIN Channel 1 will trigger the LIN_OnErrorMessage callback function

  LIN::Frame frame(0x3C, 0, LIN::Channel_1::ChannelMappingID);
  frame.OnErrorMessage = LIN_OnErrorMessage;//The 0x3C frame on LIN Channel 1 will trigger the LIN_OnErrorMessage callback function

  LIN::Frame frame(0x3C, 0, 0xFFFFFFFFL);
  frame.OnErrorMessage = LIN_OnErrorMessage;//The 0x3C frame on all LIN channels will trigger the LIN_OnErrorMessage callback function

10. DDS​

10.1 Send Frame​

10.1.1 Send UDP Frame​

Description

  • Send a UDP frame

Usage

Ethernet::UDPNodeInfo nodeInfo;
nodeInfo.setSrcMac( 1, 2, 3, 4, 5, 6 )
        .setSrcIp( 127, 0, 0, 1 )
        .setSrcPort(11)
        .setDstMac( 1, 2, 3, 4, 5, 6 )
        .setDstIp( 192, 168, 0, 1 )
        .setDstPort(29)
        .setTtl(64)
        .setVlan(129);//Configure UDP node information

Ethernet::Frame frame(8, Ethernet::Channel_1::ChannelMappingID, nodeInfo);
frame.Data(0) = 1;
frame.Data(1) = 2;
frame.Data(2) = 3;
frame.Data(3) = 4;
frame.Data(4) = 5;
frame.Data(5) = 6;
frame.Data(6) = 7;
frame.Data(7) = 8;

frame.Transmit();

10.1.2 Send the specific DDS Frame​

Description

  • Send a specific DDS frame

Usage

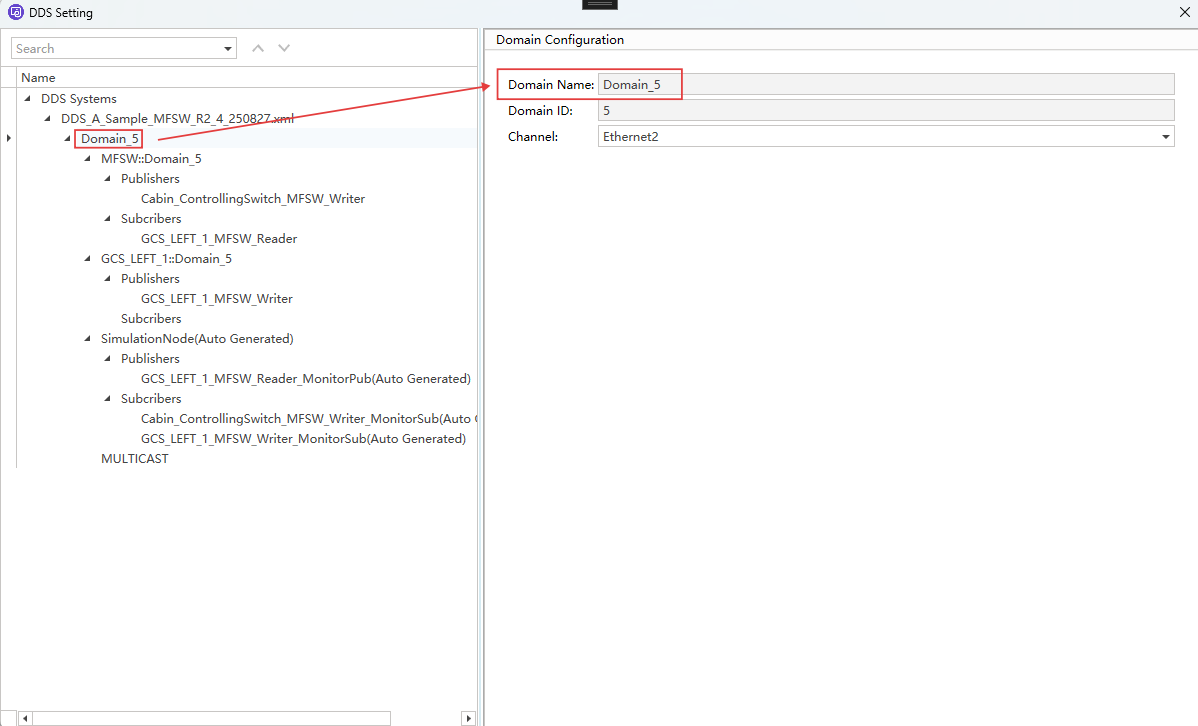

  • Assume we have imported a xml file into the DDS System, we can designate Domain Name as Domain_5. alt text

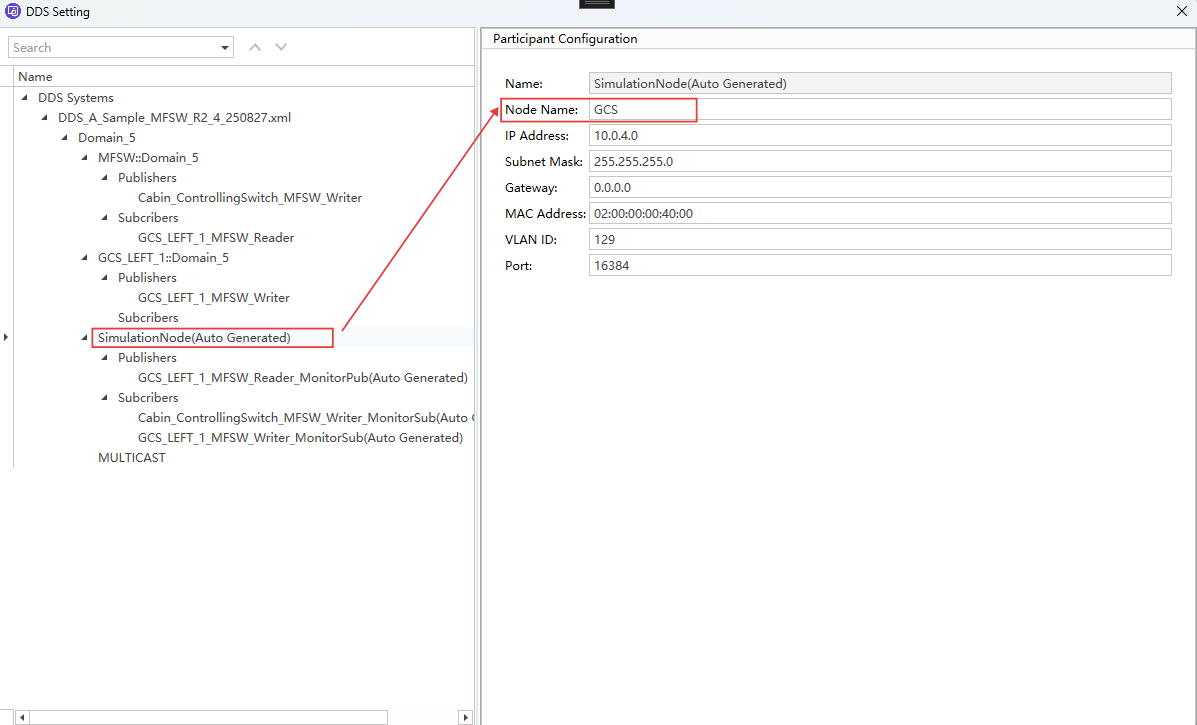

  • A single domain may contain multiple nodes, now we designate a node as GCS. alt text

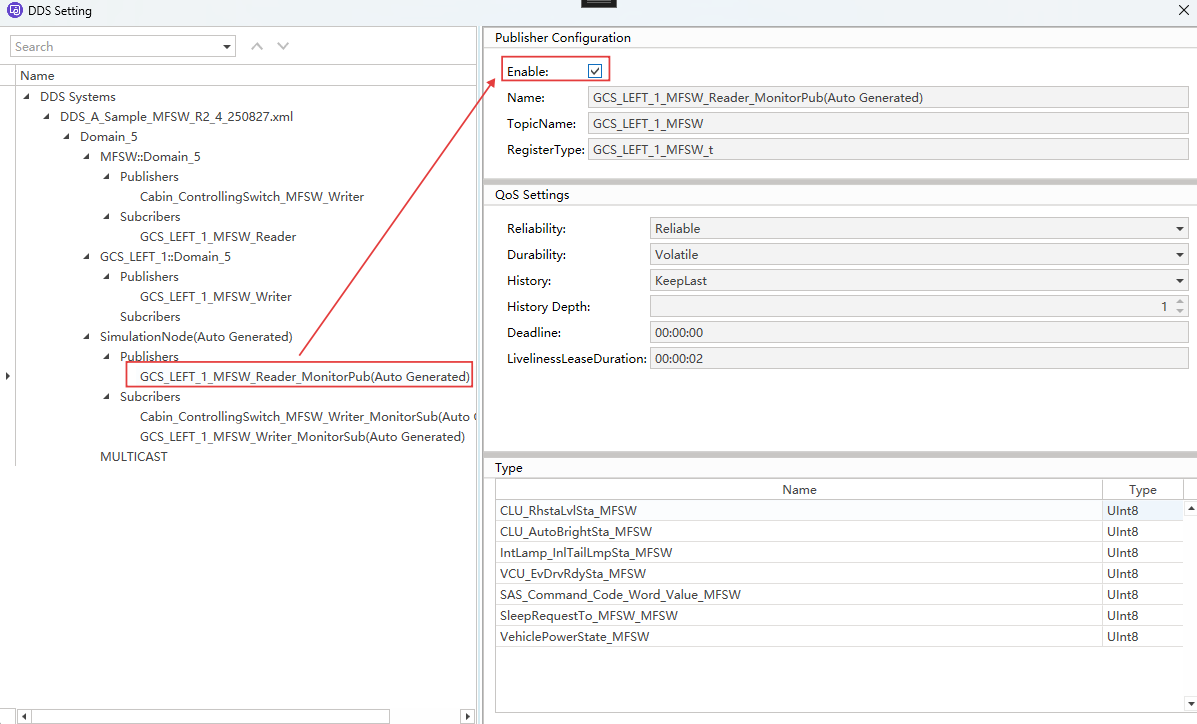

  • Topics enabled under Publishers can transmit signals. alt text
DDS::Domain_5::GCS::GCS_LEFT_1_MFSW msg;
msg.CLU_RhstaLvlSta_MFSW = 0xab;
msg.Transmit();

10.2 Register a callback for all Ethernet channels​

  • Ethernet callbacks can receive DDS/UDP/RTPS messages. If the callback is triggered, operations can be performed on the callback in the following format.

Usage

void OnEthFrameMessage(Ethernet::Frame* msg)
{
   if (msg->EventType == Ethernet::DDS_Data)
    {
      //Do something for DDS data
    }
   if (msg->EventType == Ethernet::UDP_Data)
    {
      //Do something for UDP data
    }
   if (msg->EventType == Ethernet::RTPS_Data)
    {
      //Do something for RTPS data
    }
}

10.2.1 Register receive callback for all Ethernet channels​

Description

  • All receive callbacks for all DDS/UDP/RTPS frames across all channels will trigger the OnMessage.

Usage

Ethernet::OnMessage = OnEthFrameMessage;

10.2.2 Register transmission completion callback for all Ethernet channels​

Description

  • All transmission completion callbacks for all DDS/UDP/RTPS frames across all channels will trigger the OnTxMessage.

Usage

Ethernet::OnTxMessage = OnEthFrameMessage;

10.2.3 Register urgent callback for all Ethernet channels​

Description

  • All urgent callbacks for all DDS/UDP/RTPS frames across all channels will trigger the OnUrgentMessage.

Usage

Ethernet::OnUrgentMessage = OnEthFrameMessage;

10.2.4 Register error frame callback for all Ethernet channels​

Description

  • If an error frame occurs in the DDS/UDP/RTPS messages across all channels, the error frame callback OnErrorMessage will be triggered.

Usage

Ethernet::OnErrorMessage = OnEthFrameMessage;

10.2.5 Register pre-transmission callback for all Ethernet channels​

Description

  • All pre-transmission callbacks for all DDS/UDP/RTPS frames across all channels will trigger the OnPreTxMessage.

Usage

Ethernet::OnPreTxMessage = OnEthFrameMessage;

10.3 Register a callback for a specific Ethernet channel​

Note: The format of OnEthCh1FrameMessage is identical to that of OnEthFrameMessage in 10.2.

10.3.1 Register receive callback for Ethernet channel1​

Description

  • All receive callbacks for all DDS/UDP/RTPS frames on Channel1 will trigger OnMessage.

Usage

Ethernet::Channel_1::OnMessage = OnEthCh1FrameMessage;

10.3.2 Register transmission completion callback for Ethernet channel1​

Description

  • All transmission completion callbacks for all DDS/UDP/RTPS frames on Channel1 will trigger OnTxMessage.

Usage

Ethernet::Channel_1::OnTxMessage = OnEthCh1FrameTxMessage;

10.3.3 Register urgent callback for Ethernet channel1​

Description

  • All urgent callbacks for all DDS/UDP/RTPS frames on Channel1 will trigger OnUrgentMessage.

Usage

Ethernet::Channel_1::OnUrgentMessage = OnEthCh1FrameUrgentMessage;

10.3.4 Register error frame callback for Ethernet channel1​

Description

  • If an error frame occurs in the DDS/UDP/RTPS messages on Channel1, the error frame callback OnErrorMessage will be triggered.

Usage

Ethernet::Channel_1::OnErrorMessage = OnEthCh1FrameUrgentMessage;

10.3.5 Register pre-transmission callback for Ethernet channel1​

Description

  • All pre-transmission callbacks for all DDS/UDP/RTPS frames on Channel1 will triggerOnPreTxMessage.

Usage

Ethernet::Channel_1::OnPreTxMessage = OnEthCh1FrameUrgentMessage;

10.4 Receive the specific DDS message​

Note: Callbacks registered in the following format can only receive messages sent in format 10.1.2

  • If the specific DDS message is required to trigger the receive callback, the following code can be used.

Usage

  void OnDDSFrame(DDS::Domain_5::GCS::GCS_LEFT_1_MFSW *msg)
  {
   //DO something
  }

  DDS::Domain_5::GCS::GCS_LEFT_1_MFSW::OnMessage = OnDDSFrame;
  • If the specific DDS message is required to trigger the pre-transmission callback, the following code can be used.

Usage

  void OnDDSPreTxFrame(DDS::Domain_5::GCS::GCS_LEFT_1_MFSW *msg)
  {
   //DO something
  }

  DDS::Domain_5::GCS::GCS_LEFT_1_MFSW::OnPreTxMessage = OnDDSPreTxFrame;
  • If the specific DDS message is required to trigger the transmission completion callback, the following code can be used.

Usage

  void OnDDSTxFrame(DDS::Domain_5::GCS::GCS_LEFT_1_MFSW *msg)
  {
   //DO something
  }

  DDS::Domain_5::GCS::GCS_LEFT_1_MFSW::OnTxMessage = OnDDSTxFrame;
  • If the specific DDS message is required to trigger the urgent callback, the following code can be used.

Usage

  void OnDDSUrgentFrame(DDS::Domain_5::GCS::GCS_LEFT_1_MFSW *msg)
  {
   //DO something
  }

  DDS::Domain_5::GCS::GCS_LEFT_1_MFSW::OnUrgentMessage = OnDDSUrgentFrame;

11. Digital​

11.1 Set Digital Output Level​

Description

  • Set digital output level

11.1.1 Do_Set​

Note: This legacy API is not recommended for further use. We recommend using the format of 11.1.2.

KAPI_ErrCode Do_Set(uint32_t channelMappingID, boolean lvl);

parameters

  • channelMappingID Digital output channel ID
  • lvl
    • 0 Low level
    • 1 High level

Return

  • 0 Success
  • Other Failed

Usage

Do_Set(0, 1);

11.1.2 Digital::Output::ChannelMappingID::Value​

Usage

  Digital::Output::Channel_1::Value = 1;

11.2 Get Digital Input Status​

Description

  • Get digital input status

11.2.1 Di_Get​

Note: This legacy API is not recommended for further use. We recommend using the format of 11.2.2.

KAPI_ErrCode Di_Get(uint32_t channelMappingID, boolean* value);

parameters

  • channelMappingID Digital input channel ID
  • value Pointer to store input status
    • 0 Low level
    • 1 High level

Return

  • 0 Success
  • Other Failed

Usage

boolean value;
Di_Get(0, &value);

11.2.2 Digital::Input::ChannelMappingID::Value​

Usage

  boolean DiInValue;
  DiInValue = Digital::Input::Channel_1::Value;

12. Analog​

12.1 Get Analog Input Voltage​

Description

  • Get analog input voltage

12.1.1 Ai_Get​

Note: This legacy API is not recommended for further use. We recommend using the format of 12.1.2.

KAPI_ErrCode Ai_Get(uint32_t channelMappingID, double* value);

parameters

  • channelMappingID Analog input channel ID
  • value Pointer to store voltage value

Return

  • 0 Success
  • Other Failed

Usage

double value;
Ai_Get(0, &value);

12.1.2 Analog::Input::ChannelMappingID::Value​

Usage

  boolean AnInValue;
  AnInValue = Analog::Input::Channel_1::Value;

13. Other​

13.1 Register Keyboard Key Press Callback​

void (*resgister_onKey)(char key, void (*onKey)(void));

Description

  • Register a callback function when a key is pressed

parameters

  • key Key character
  • onKey Callback function (typedef void (*onKey)(void))

Return

  • void

Usage

void onKey(void)
{
	// Do something
}

resgister_onKey('a', onKey);

Note: This feature is case-insensitive.

13.2 System Message Output (To Host Application)​

Description

  • Output a message to the host application

13.2.1 show_system_message​

Note: This legacy API is not recommended for further use. We recommend using the format of 13.2.2.

void show_system_message(const char* str);

parameters

  • str Message content

Return

  • void

Usage

show_system_message("Hello World");

13.2.2 system_message_printf​

template<typename... Args>

void system_message_printf(const std::string& format_str, const Args&... args)

parameters

  • format_str Format string for defining the output message structure
  • args Variadic parameter pack that provides actual values to fill the placeholders in format_str

Return

  • void

Usage

int32_t DiGetValue = Digital::Output::Channel_1::Value;
system_message_printf("% - %", UI::ActionClose, Digital::Output::Channel_1::Value);

13.3 Console Message Output (To Mini Program Console)​

Description

  • Output a message to the mini program console

13.3.1 show_console_message​

Note: This legacy API is not recommended for further use. We recommend using the format of 13.3.2.

void show_console_message(const char* str);

parameters

  • str Message content

Return

  • void

Usage

show_console_message("Hello World");

13.3.2 console_printf​

template<typename... Args>

void console_printf(const std::string& format_str, const Args&... args)

parameters

  • format_str Format string for defining the output message structure
  • args Variadic parameter pack that provides actual values to fill the placeholders in format_str

Return

  • void

Usage

int32_t DiGetValue = Digital::Output::Channel_1::Value;
console_printf("% - %", UI::ActionClose, Digital::Output::Channel_1::Value);

13.4 Microsecond Delay (Busy Wait)​

void delay_us(uint32 delaytime_us);

Description

  • Delay for a specified time (Busy wait)

parameters

  • delaytime_us Delay time in microseconds

Return

  • void

Usage

delay_us(1000);

Note: This function should be used with caution, as it blocks the current thread until the delay period ends. Recommended to use timer instead of delay_us.

13.5 Millisecond Delay (Sleep)​

void delay_ms(uint32 delaytime_ms);

Description

  • Delay for a specified duration (using sleep mode)

parameters

  • delaytime_ms Delay time in milliseconds

Return

  • void

Usage

delay_ms(1000);

Note: This function should be used with caution, it is not recommended to use this function for delays of extended duration.This function has already been implemented at the underlying layer, and it is not permitted to use delay_us to manually define and implement millisecond delays.

13.6 Get Absolute Project Path​

const char* GetAbsProjectPath();

Description

  • Get the absolute path of the current project

parameters

  • void

Return

  • const char* Absolute path of the current project

Usage

const char* path = GetAbsProjectPath();

const wchar_t* GetAbsProjectPathW();

Description

  • Get the absolute path of the current project (Wide character)

parameters

  • void

Return

  • const wchar_t* Absolute path of the current project (Wide character)

Usage

const wchar_t* path = GetAbsProjectPathW();
