Project Management
Project is the basic unit to store the specific configuration of all modules of ETStudio software. Each time you launch the software, it will load the default project or the project you opened last time. you can also load specific project you saved previously.
It supportes to save project in default folder or you can specify other folders to store projects.
project menu
There are two ways to find out those menus for project management:
-

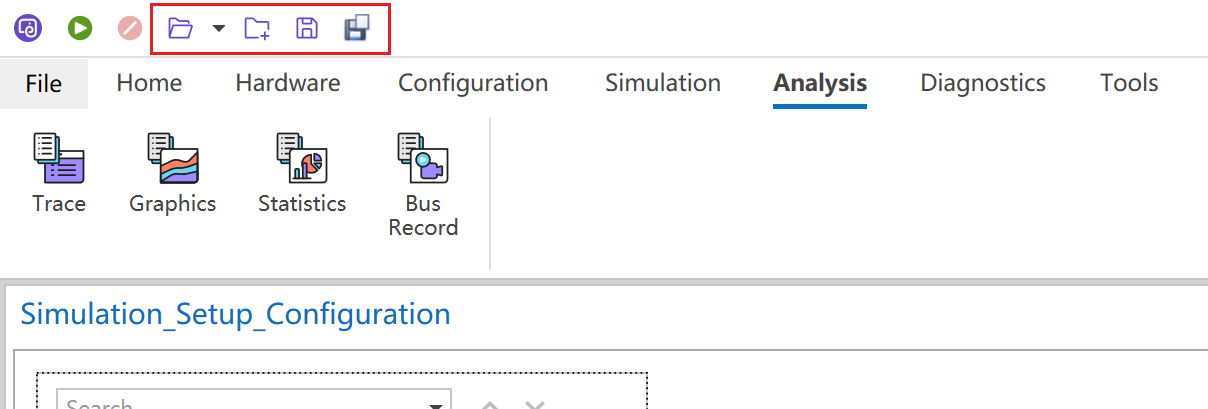

Toolbar on top of main window：
-

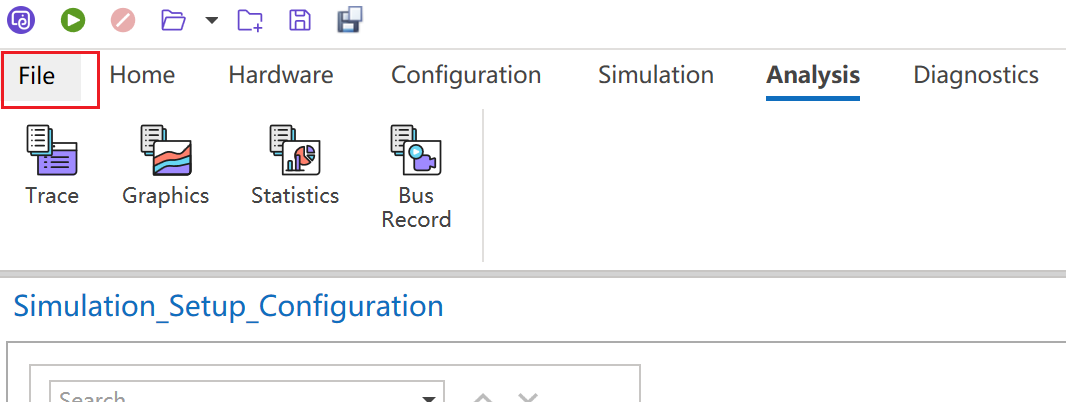

File menu:
Operate from file menu

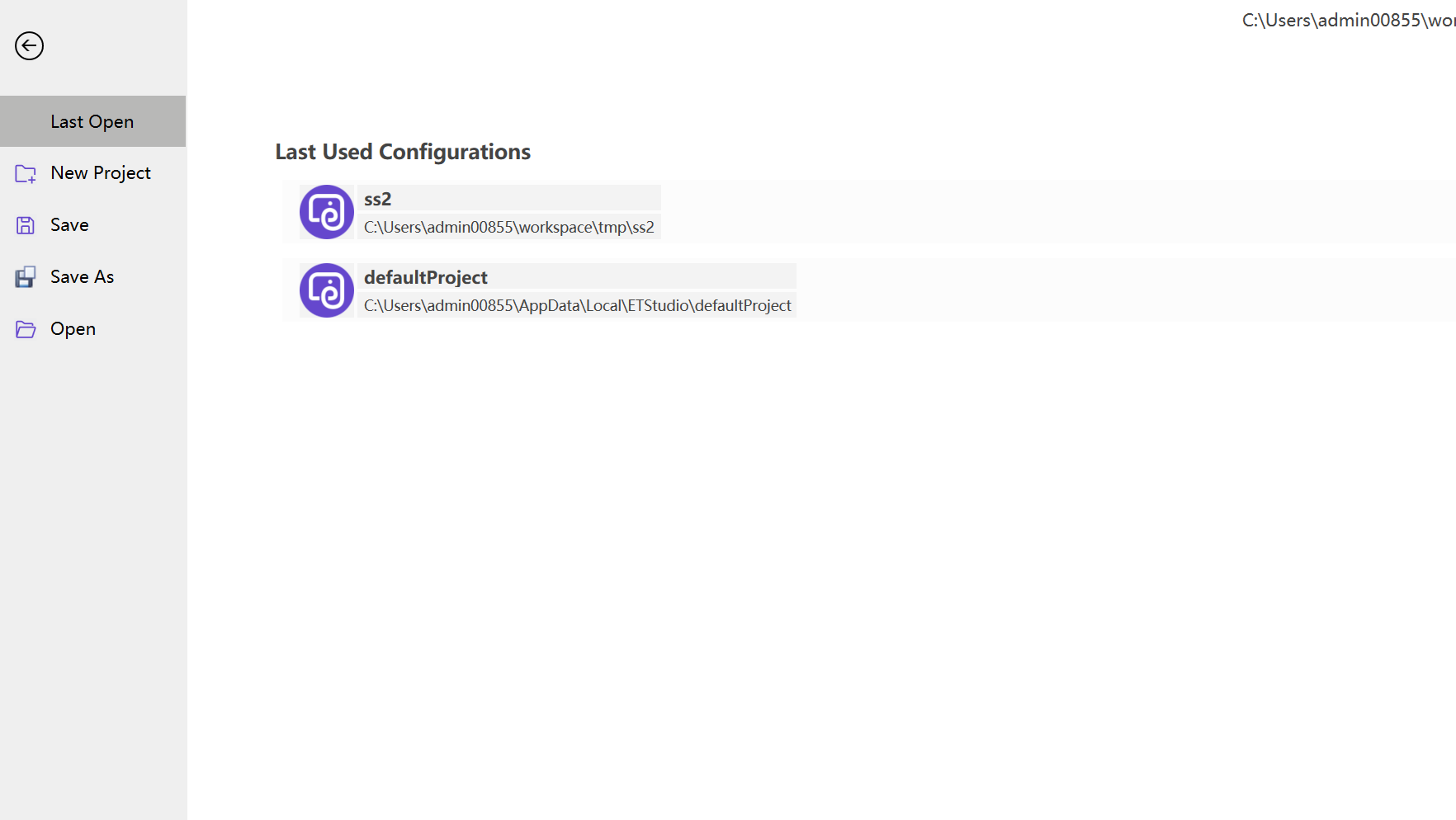

Click file menu, and you will see the file management page:
Last Open
Last Open list at most recent 9 projects that you opened before, except for your current project. Choose one of them, and double click mouse left-button to swich your current project to tht one.

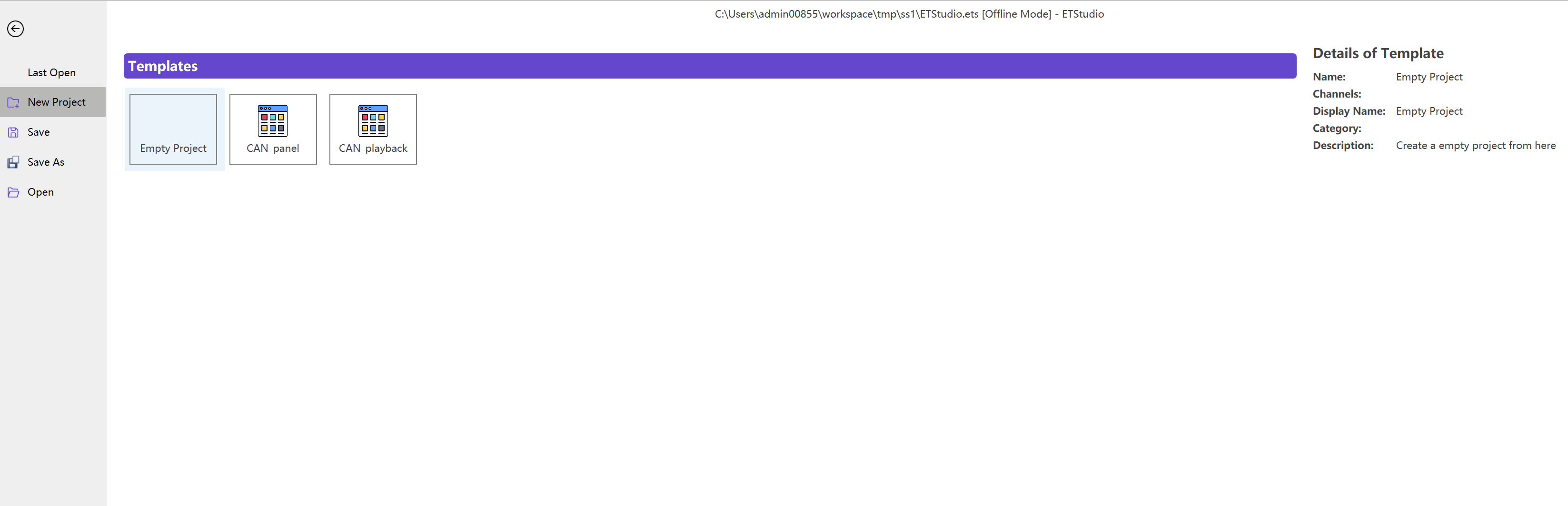

New Project

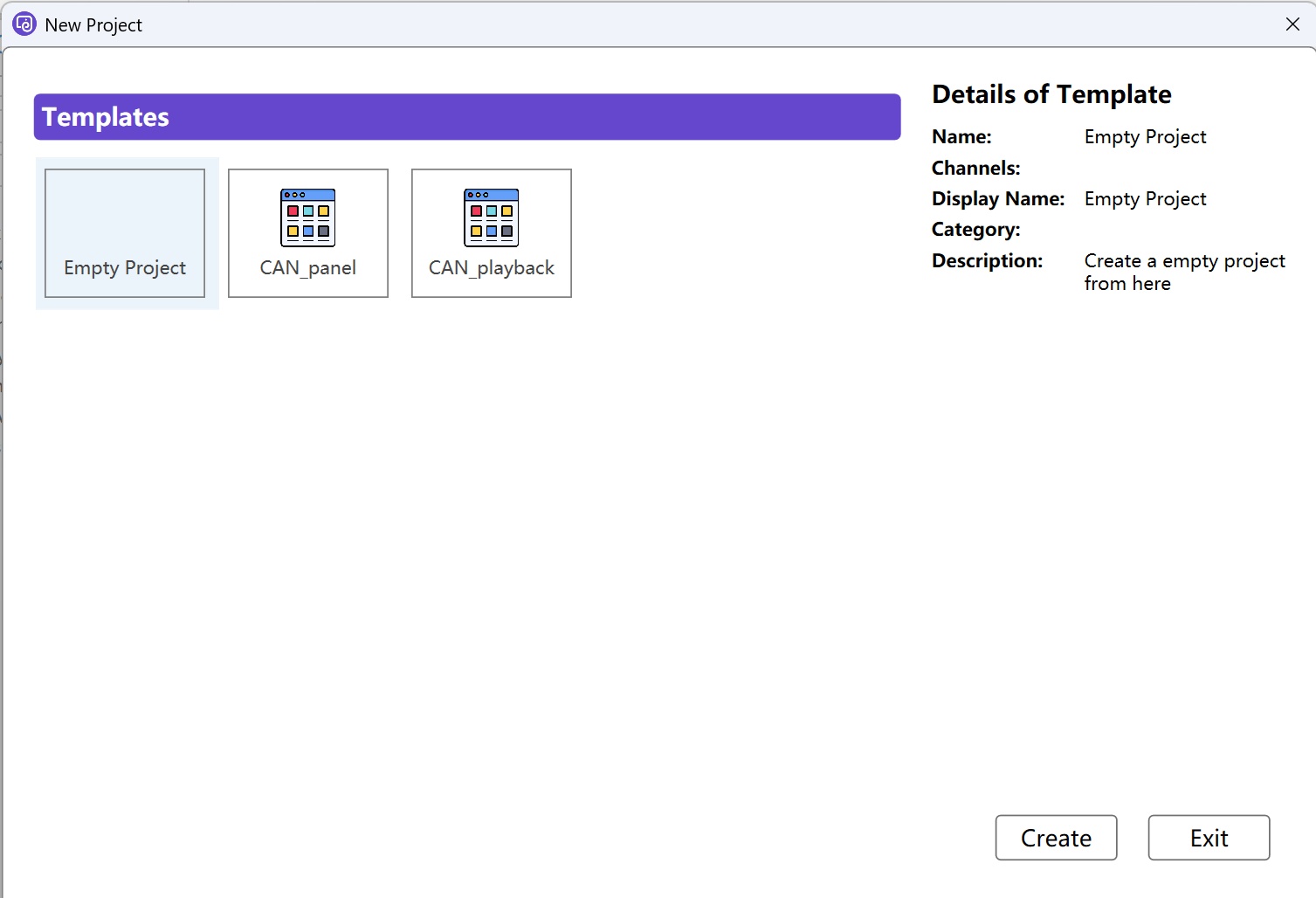

New project page will list all possible project templates.
Choose one of preconfigured template, or empty project to create the new project.
- Double-click mose left-button on the selected item
- A folder selection diaglog will pop up , and then choose an empty folder as project folder
Save
Click Save to save the setting in project you current loaded
Save As
Click Save As to save the current setting in a different project folder.
Open
Click Open to load a project from specific folder.
Operate from toolbar menu

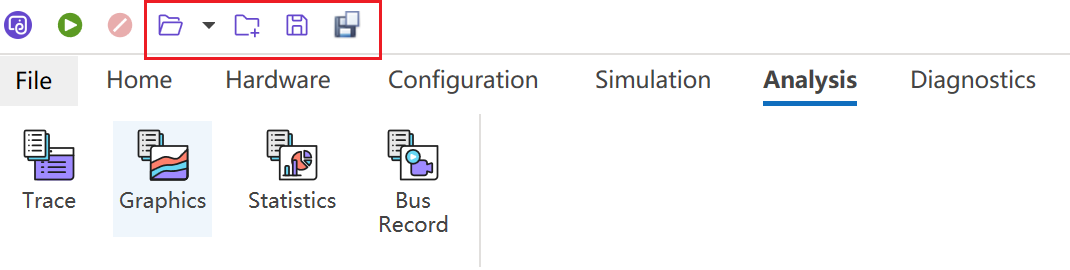

You can also do it from toolbar upon the main menu
From left to right, there are Open, New, Save and Save As which are consistent with the functionaility in file menu.
Open

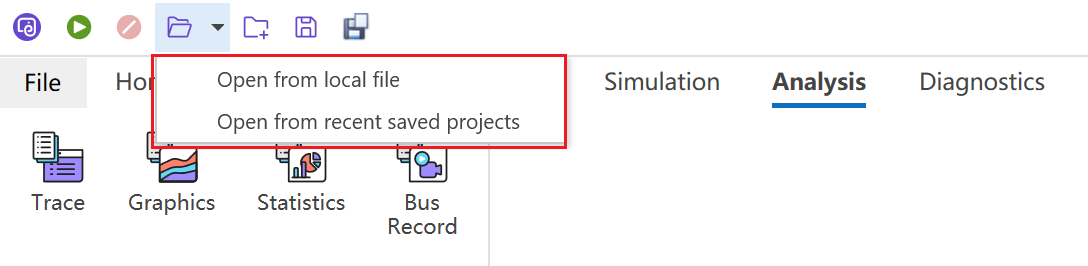

Click open button to see the drop-down list:

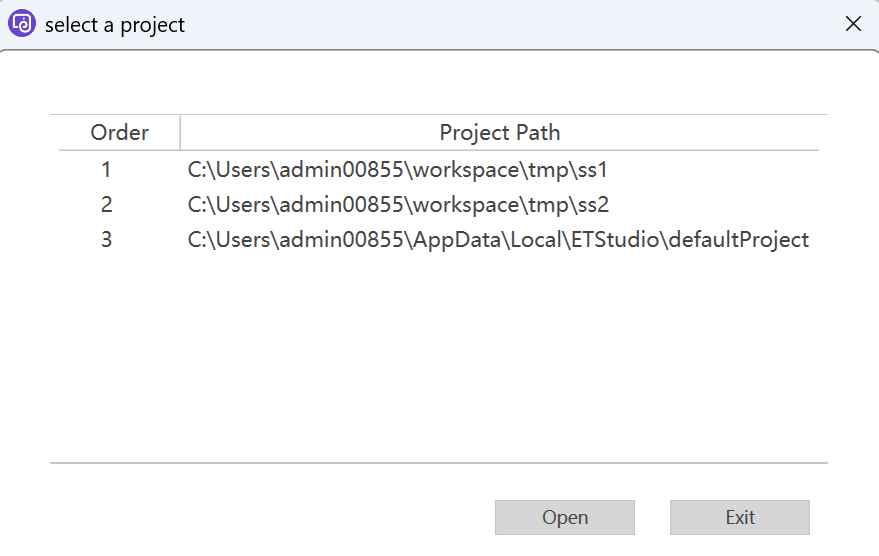

You can eigther click Open from local file to findout the proper project file to load, or click Open from recent saved projects to choose an recent used project to load:
New
Click New to create a new project from template or empty project:
Save
Click Save to save the setting in project you current loaded
Save As
Click Save As to save the current setting in a different project folder.
