Channel Mapping

Hardware channel mapping is required after connecting devices (e.g. OAKM1010) to enable other functions. Currently supports CAN, LIN, AI, DI, DO channel configuration. AO and PowerControl are not supported by OAKM1010.

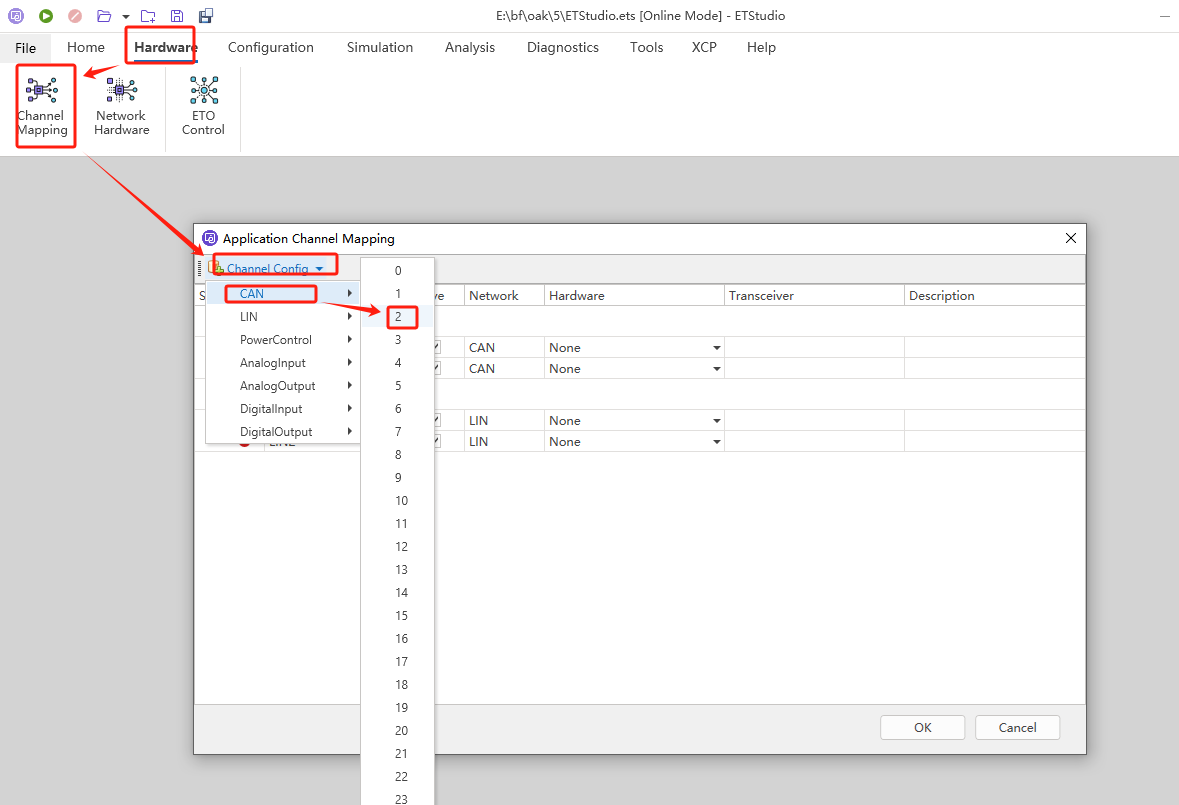

  1. Select desired channels and count.
    alt text

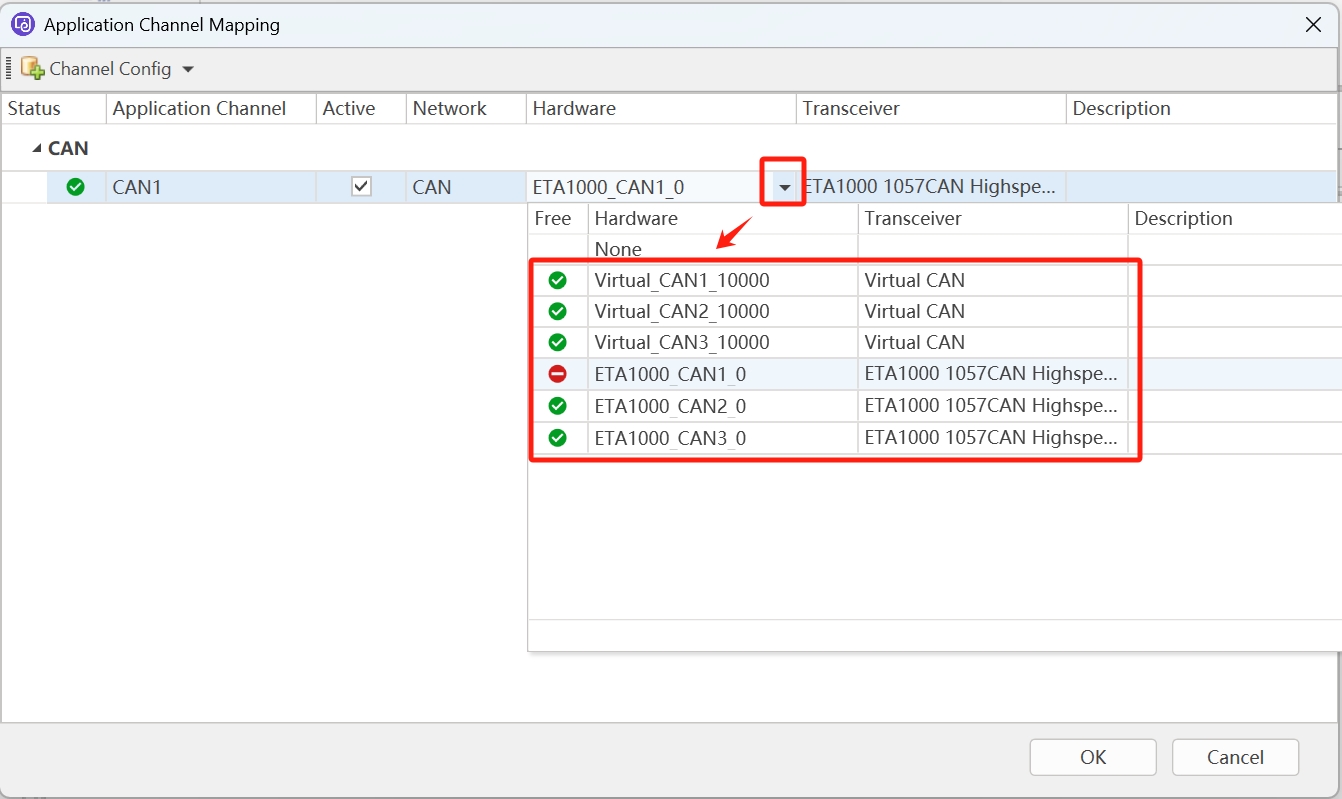

  2. Create Application Channel Mapping
    alt text
    Note: Virtual CAN channels can be selected for transmitting messages and online replay without physical hardware connection.
