Start/Stop​

alt text

  • Start: Start the measurement, starting the network simulation and data recording.
  • Stop: Stop the measurement, stopping the network simulation and data recording.

dec/hex​

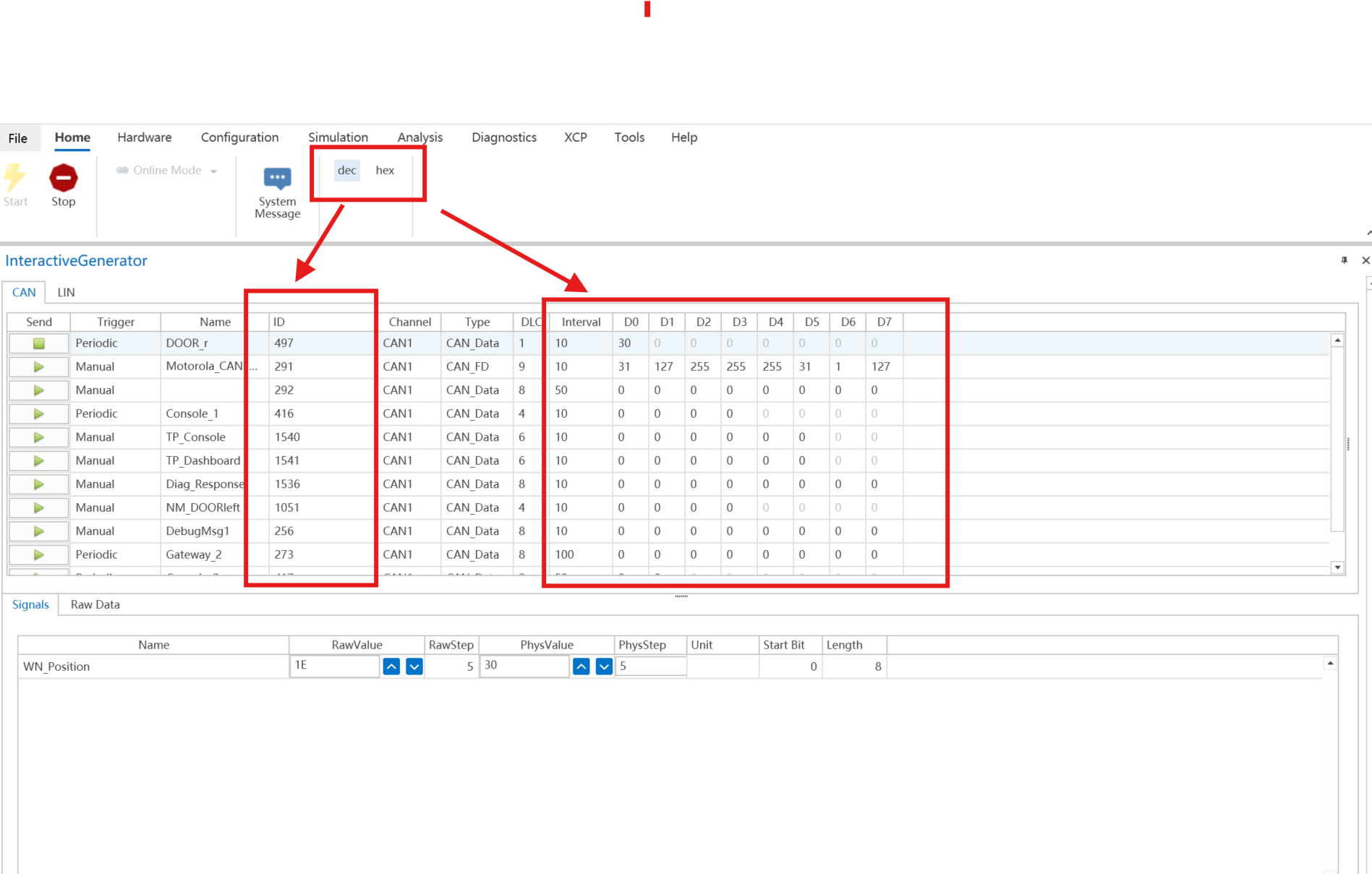

  • dec: Displays numerical values in base-10 format. As shown in the figure below. alt text

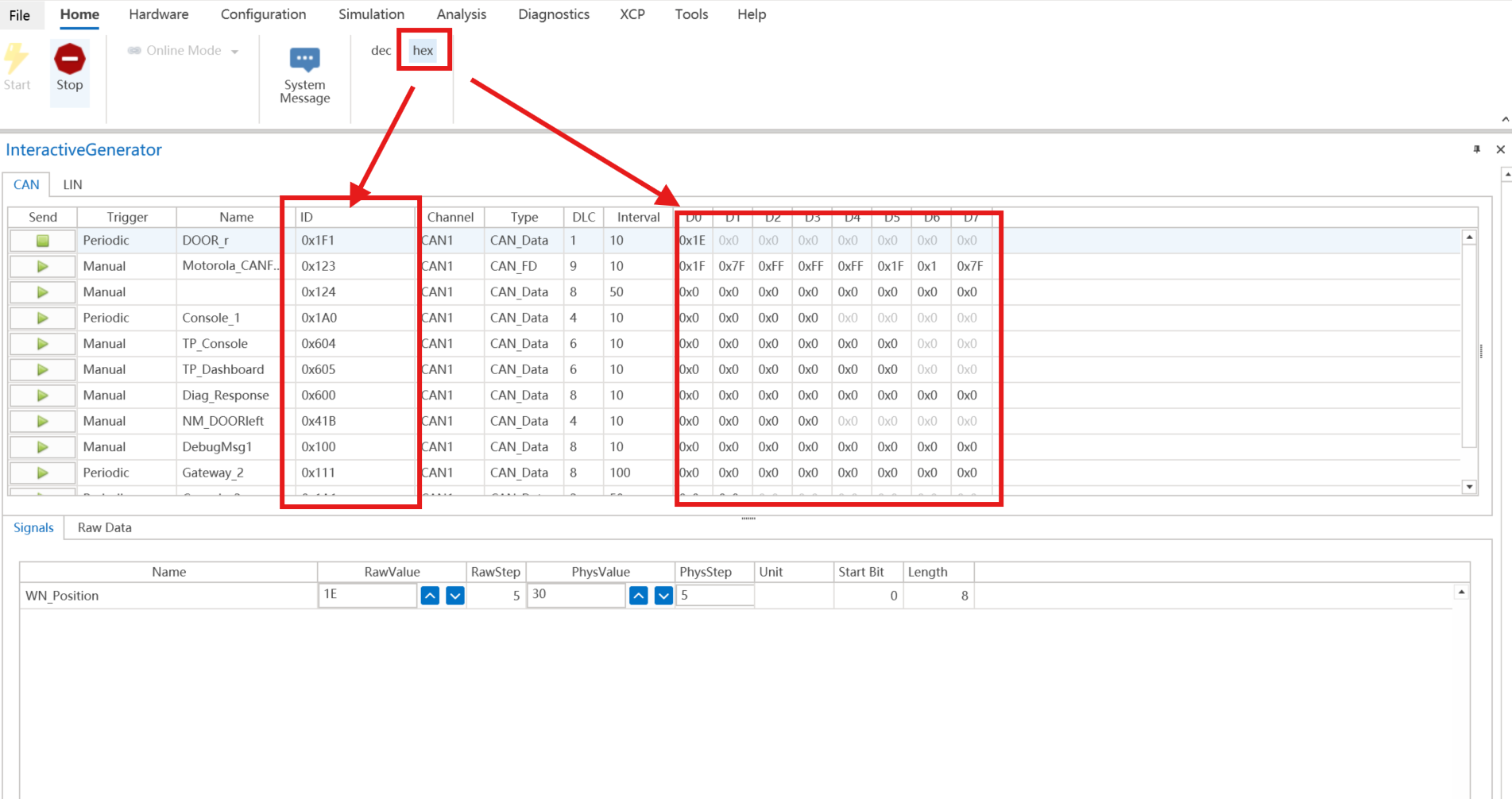

  • hex: Displays numerical values in base-16 format. As shown in the figure below. alt text

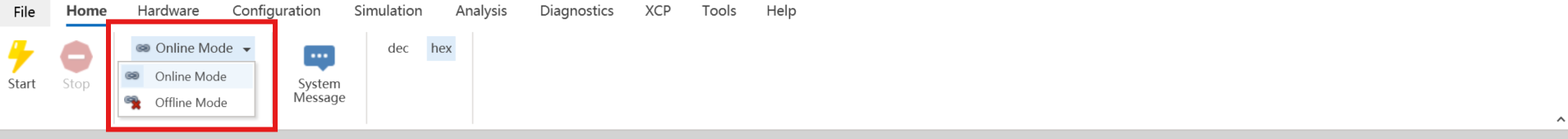

online/offline Mode​

alt text

  • Online Mode is a powerful feature that enables real-time simulation, testing, and analysis of automotive networks and ECUs.

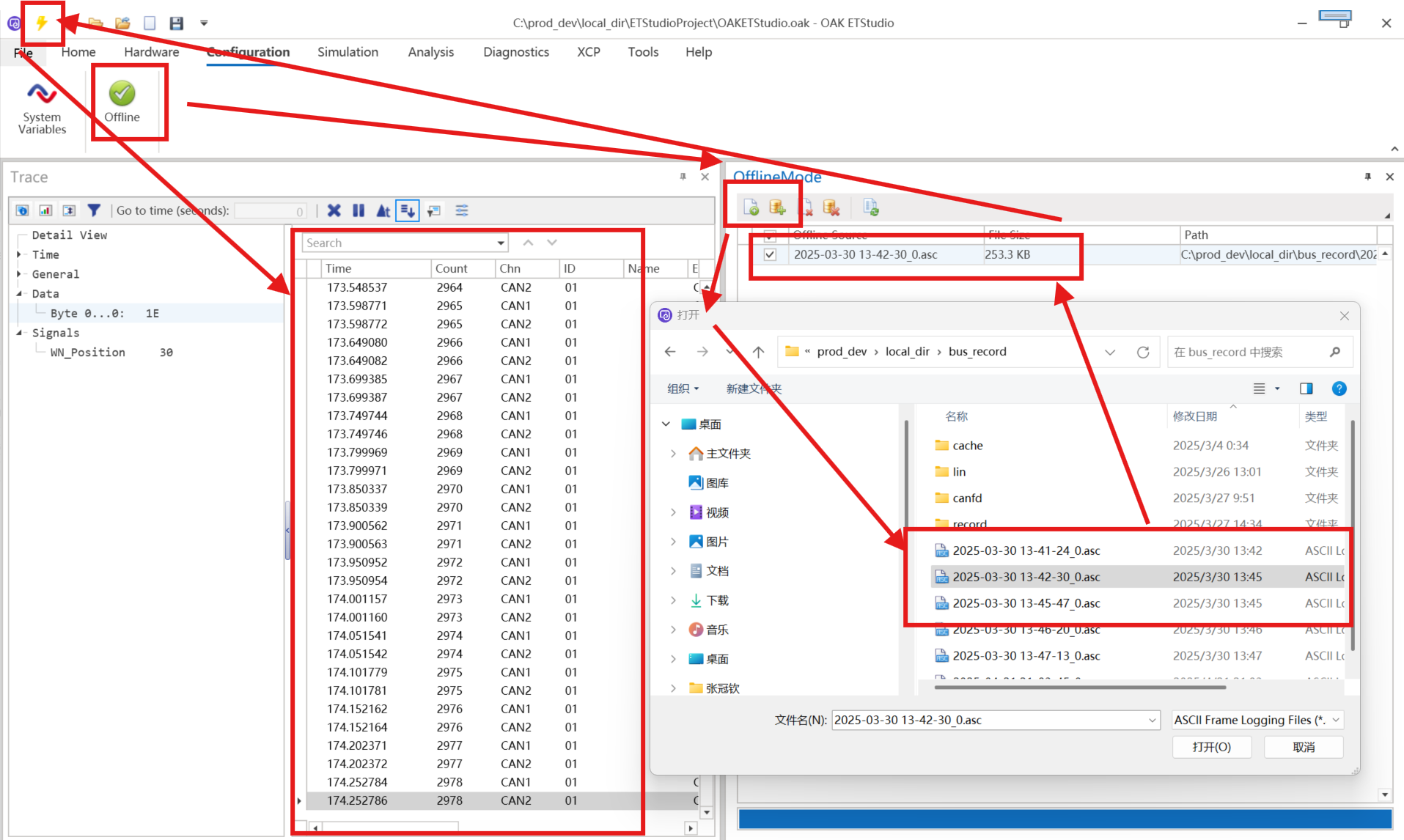

  • Offline Mode is a powerful tool that provides a flexible and controllable environment for users to reproduce, analyze, and resolve various issues encountered during the development and testing of automotive networks by replaying recorded log files. The figure below illustrates how to replay log files in offline mode. alt text

Refer to offline replay for more details.
