Network Hardware

Channel Configuration​

Available after completing channel mapping:

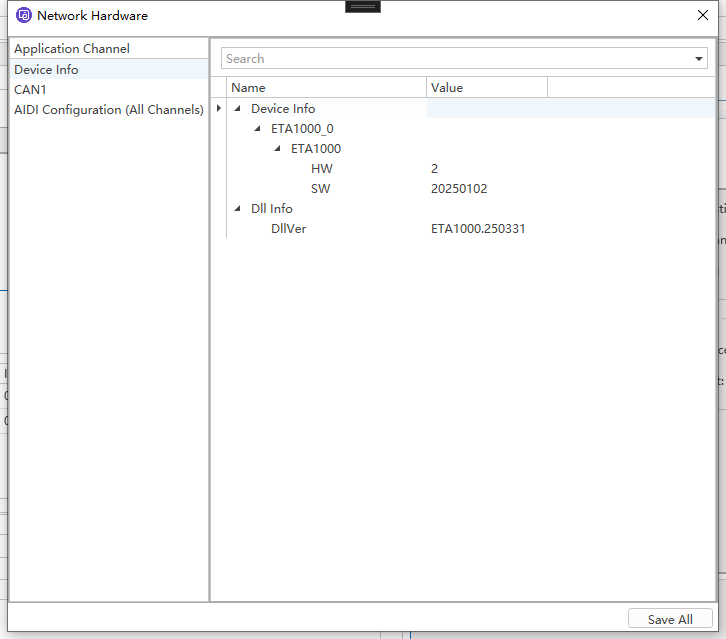

  1. Device Info - View DLL version and software/hardware version
    alt text

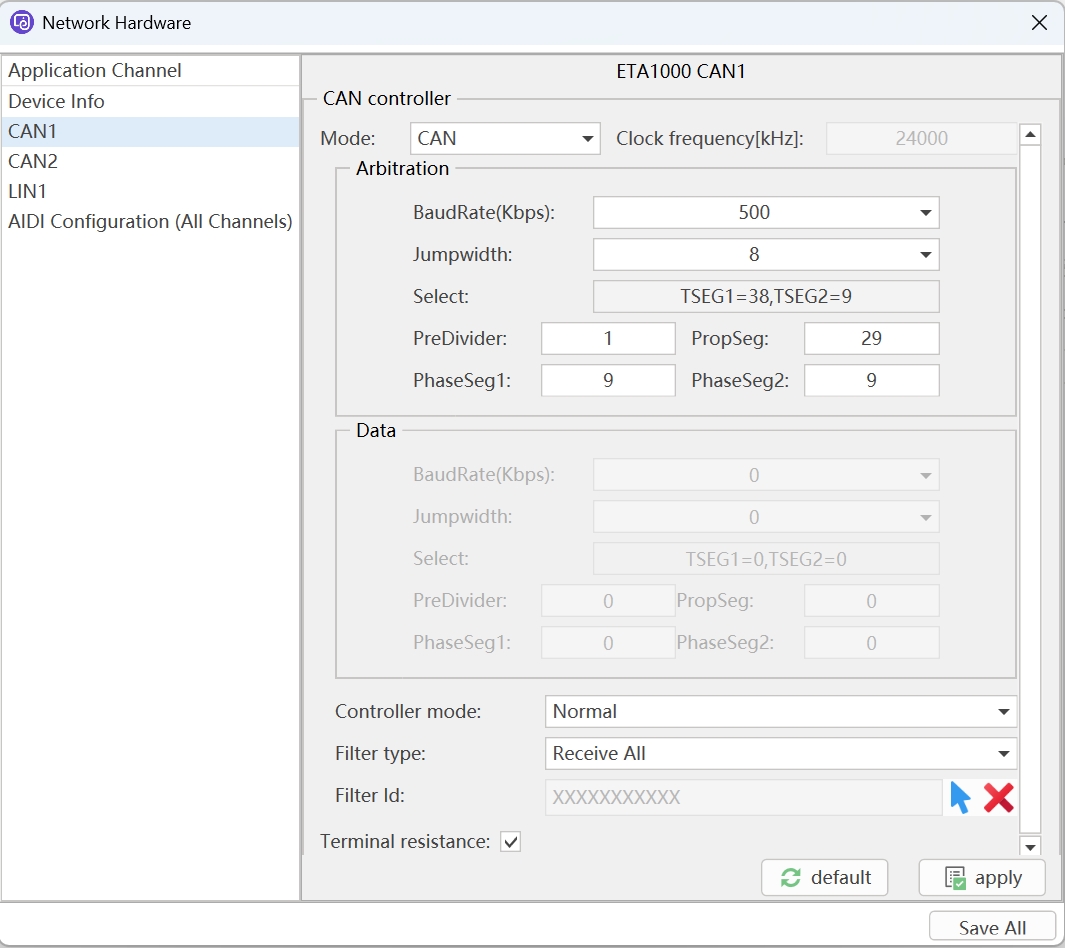

  2. CAN Configuration - Set channel parameters (Baud Rate, Bit Timing, Transition Width, etc.)
    alt text

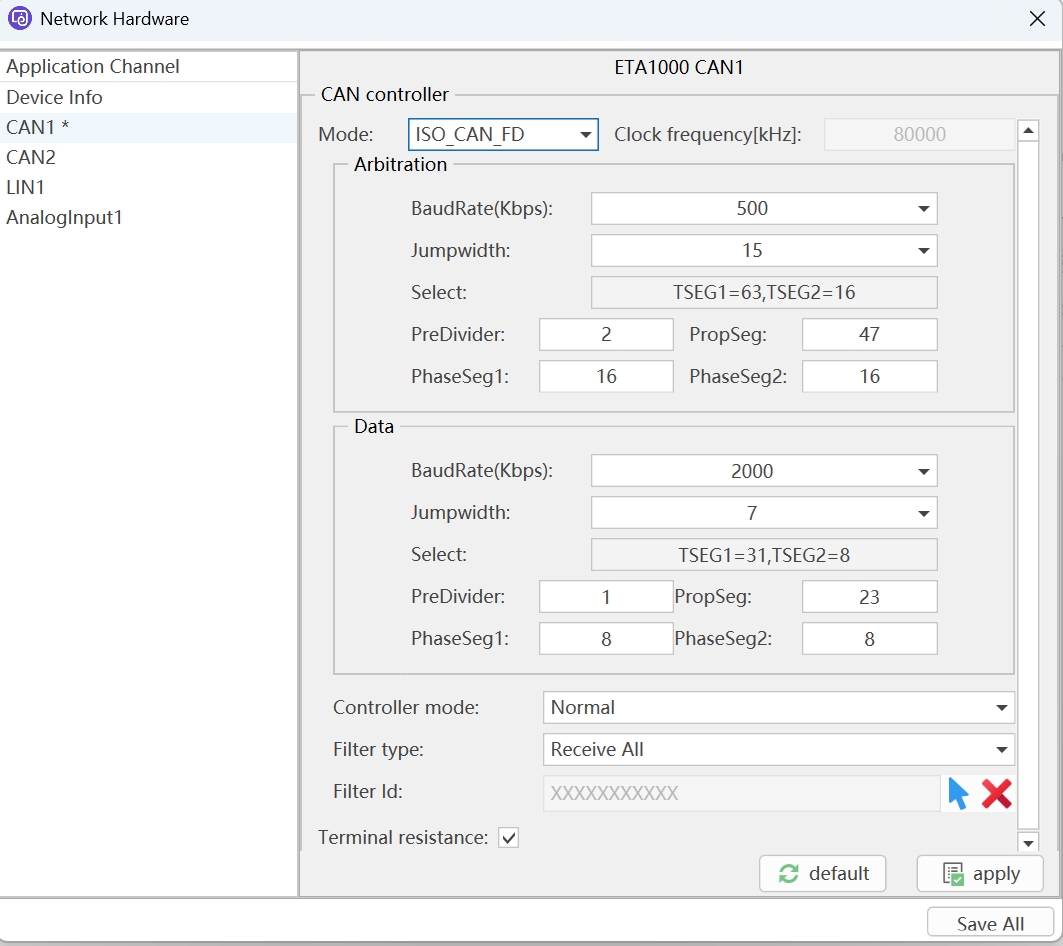

  3. CANFD Configuration - Default interface and parameters for CANFD channels
    alt text

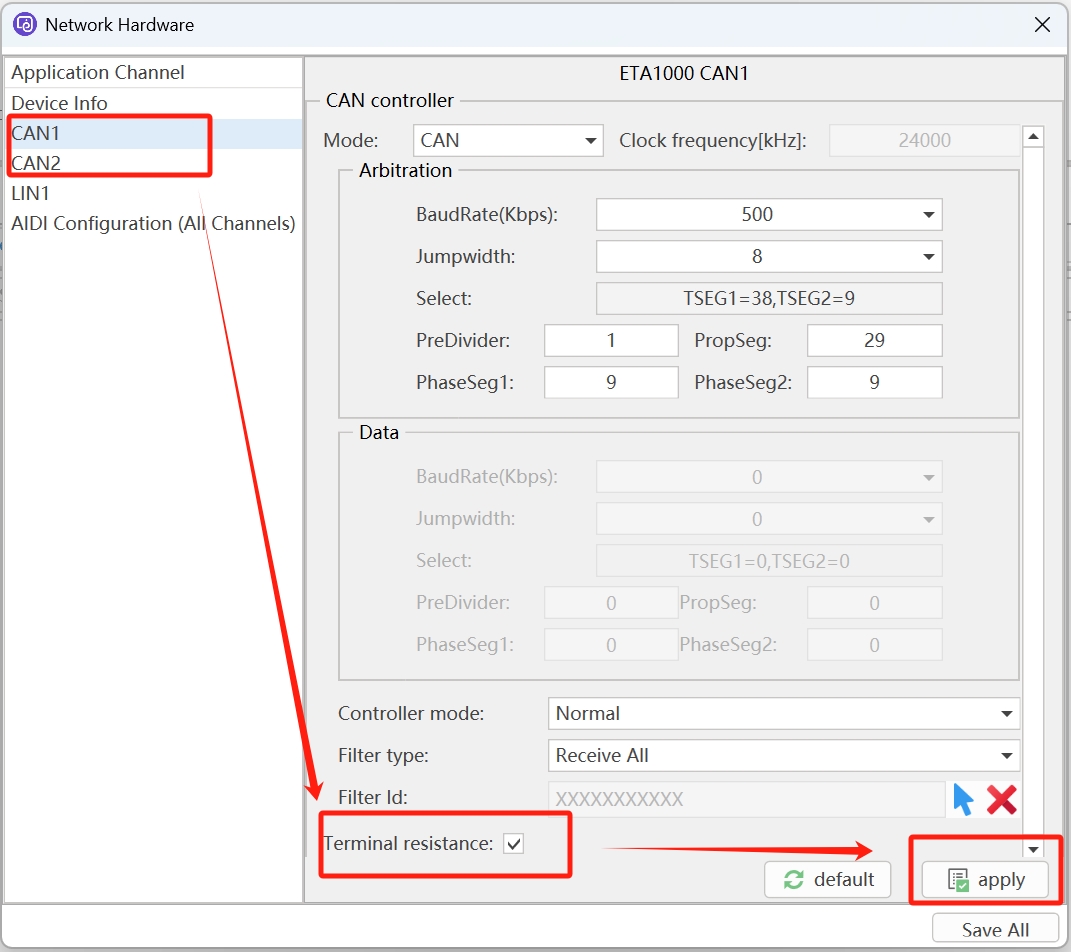

    Important: Enable Terminal Resistance for successful CAN message transmission/reception.
    alt text

LIN Configuration​

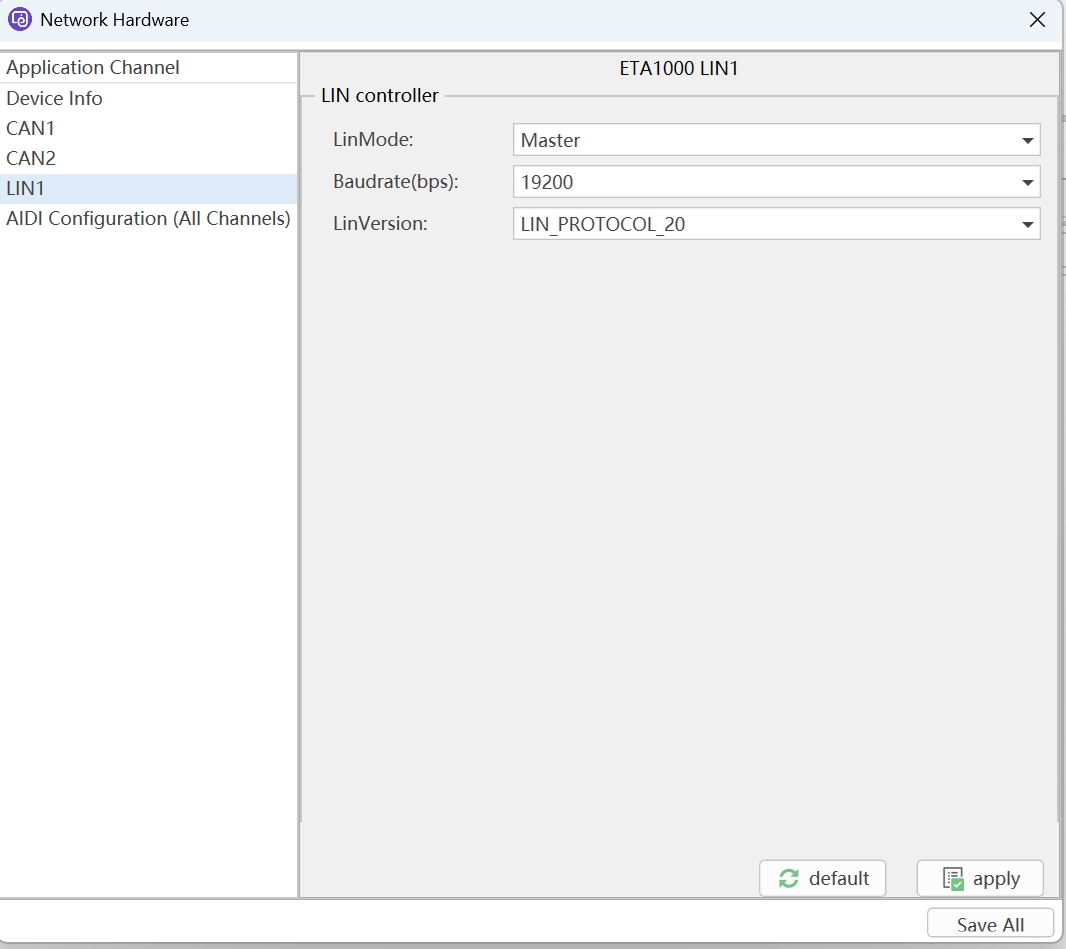

Currently supports Master node only (Slave node support pending):
alt text
