Replay Functionality

1. Launch OAK ETStudio​

  1. After installing OAK ETStudio, double-click the desktop icon to launch the host application
    alt text

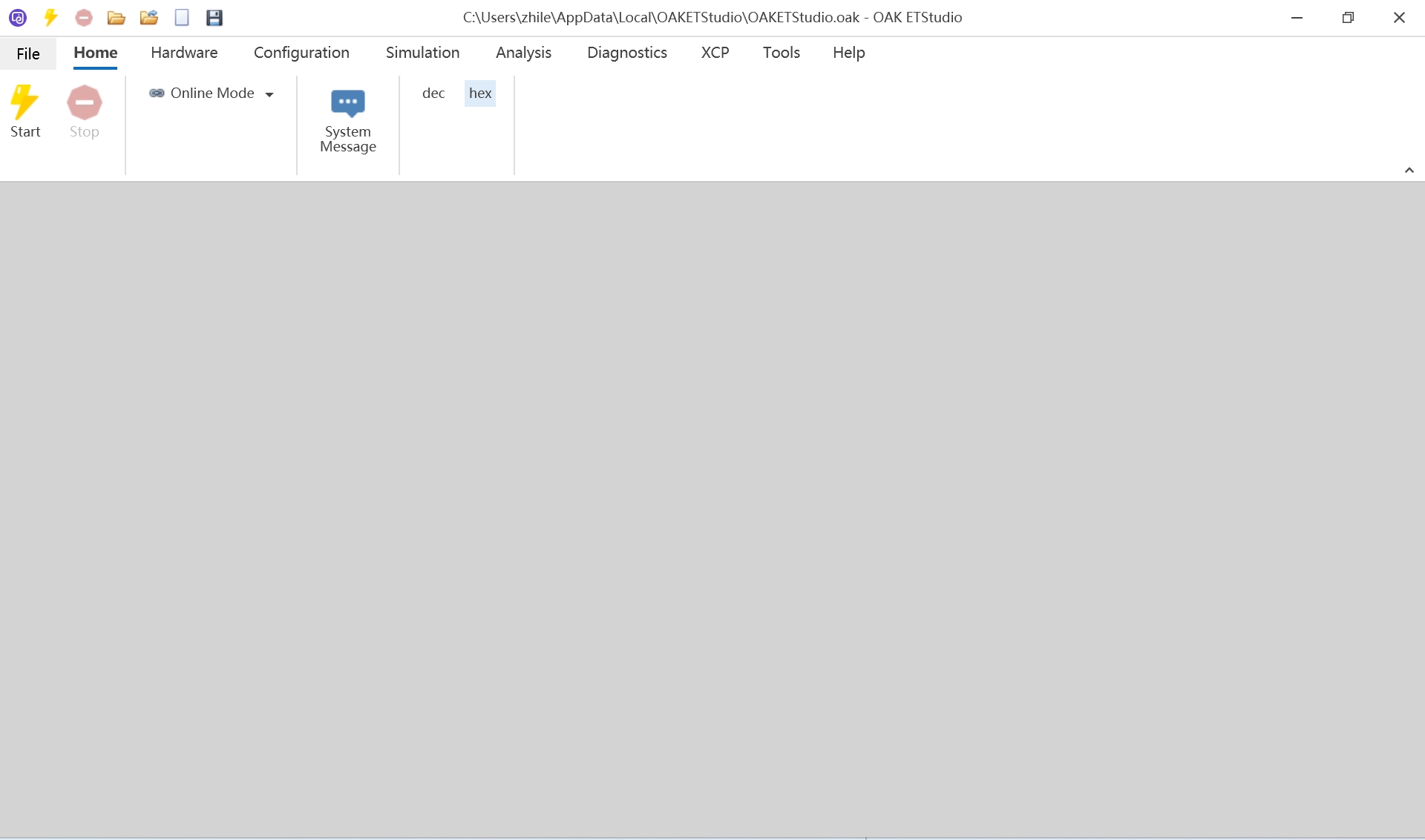

  2. Main interface of OAK ETStudio:
    alt text

2. Hardware Configuration​

  1. Connect OakM1000/M1010 via USB. OAK ETStudio will auto-detect the device. If not detected:

    • Verify physical connection
    • Restart OAK ETStudio

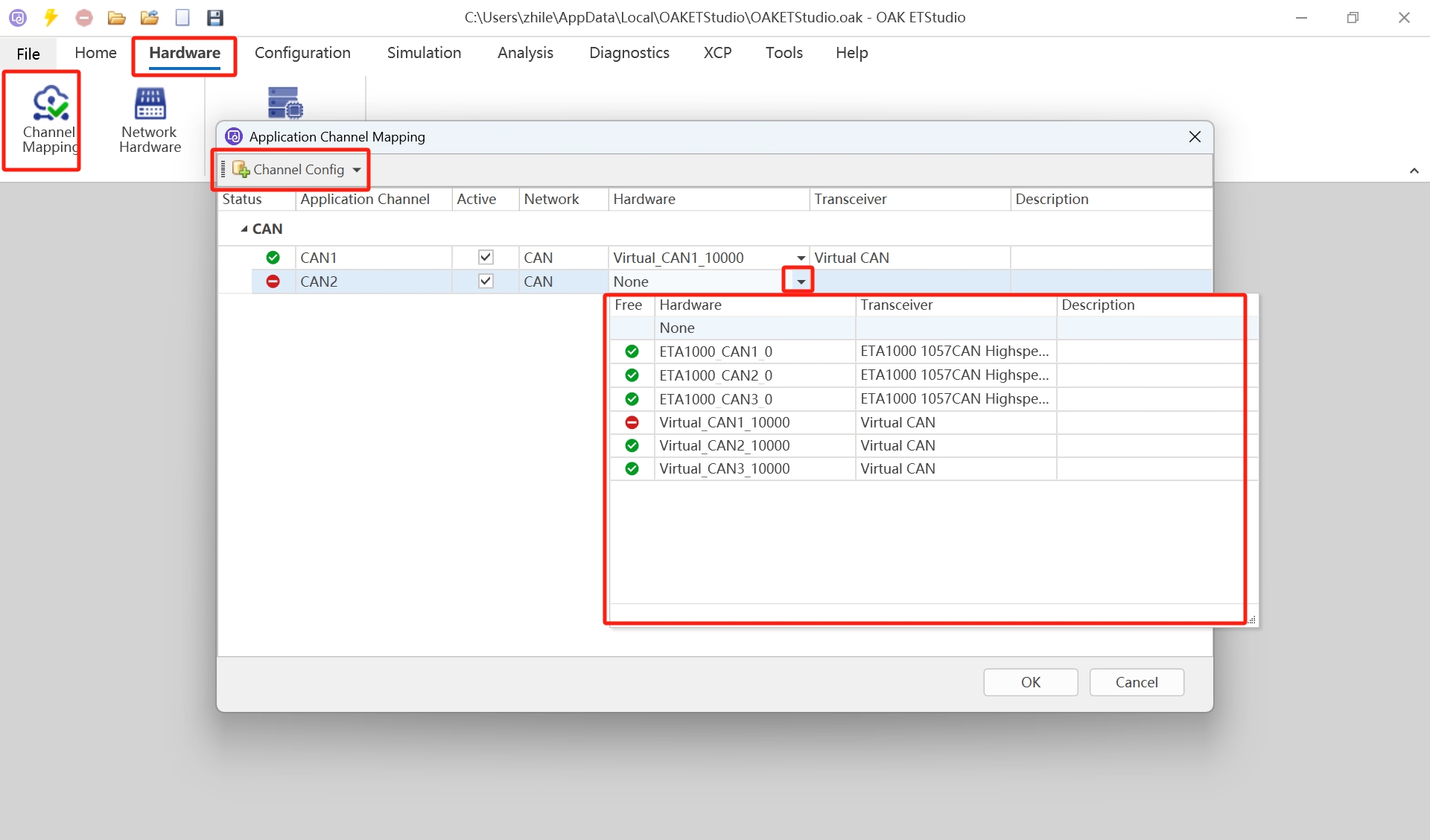

  2. Configure Channel Mapping:
    alt text

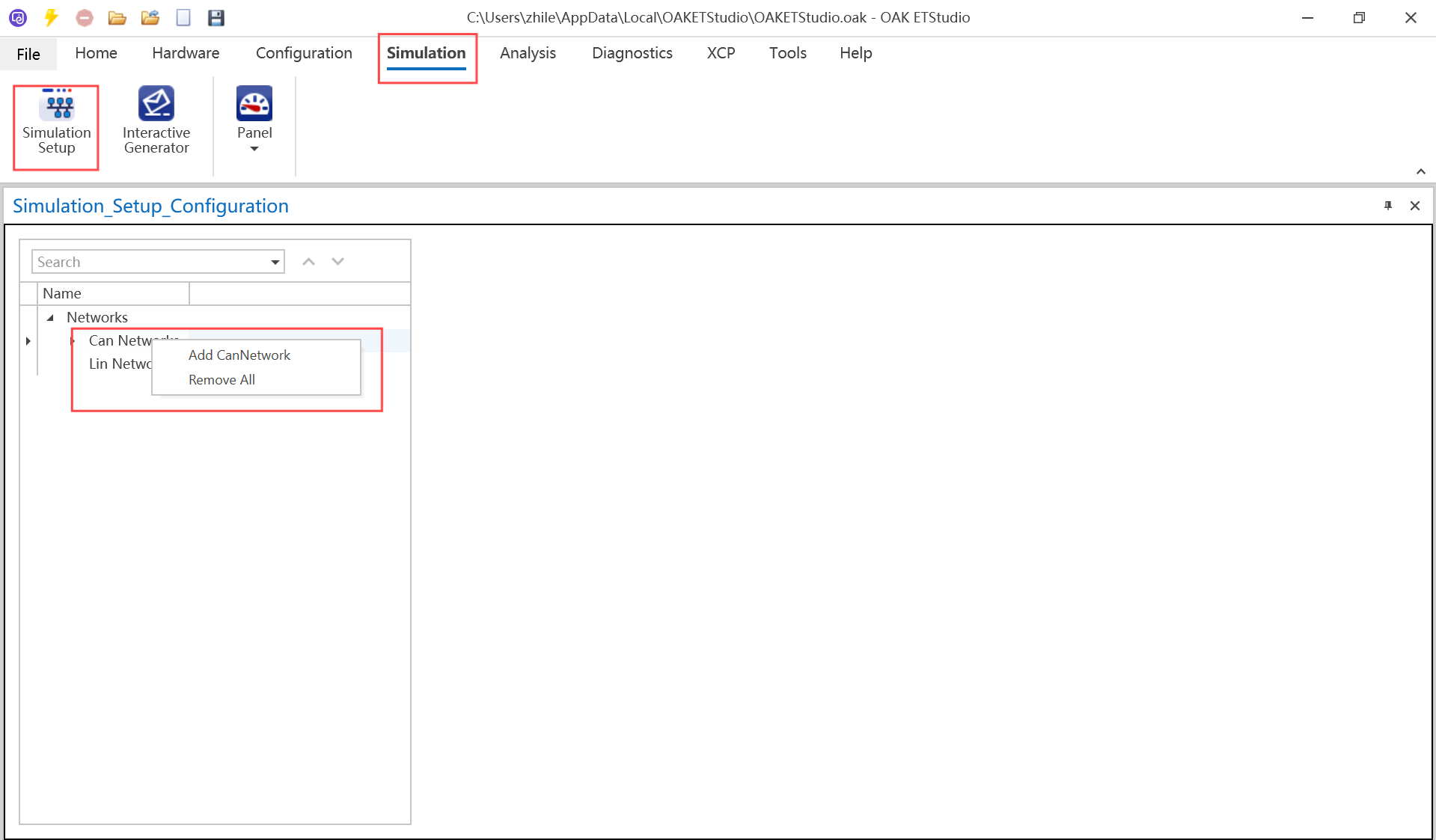

  3. Configure Network Hardware:
    alt text

3. Transmit CAN Messages via IG​

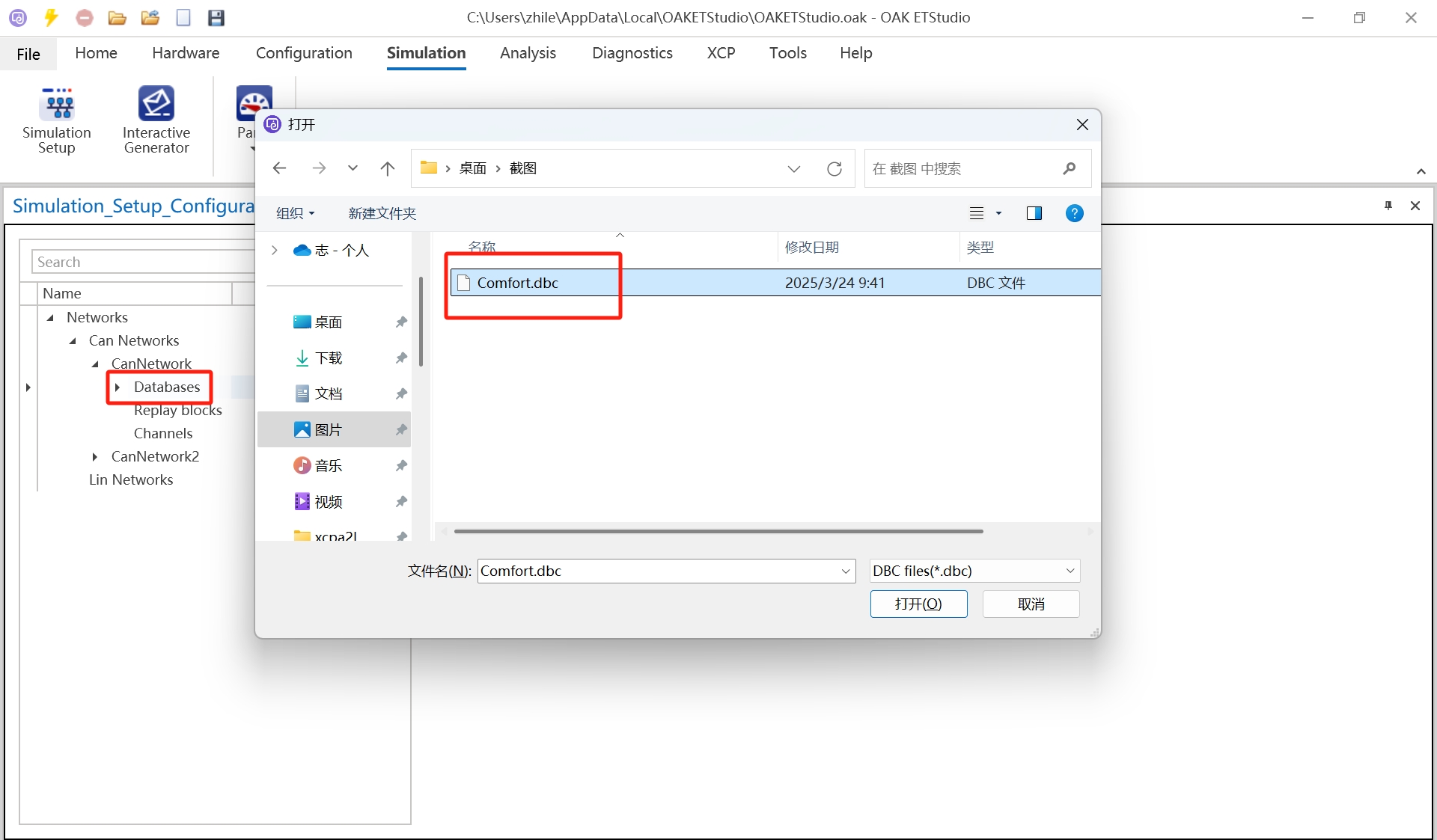

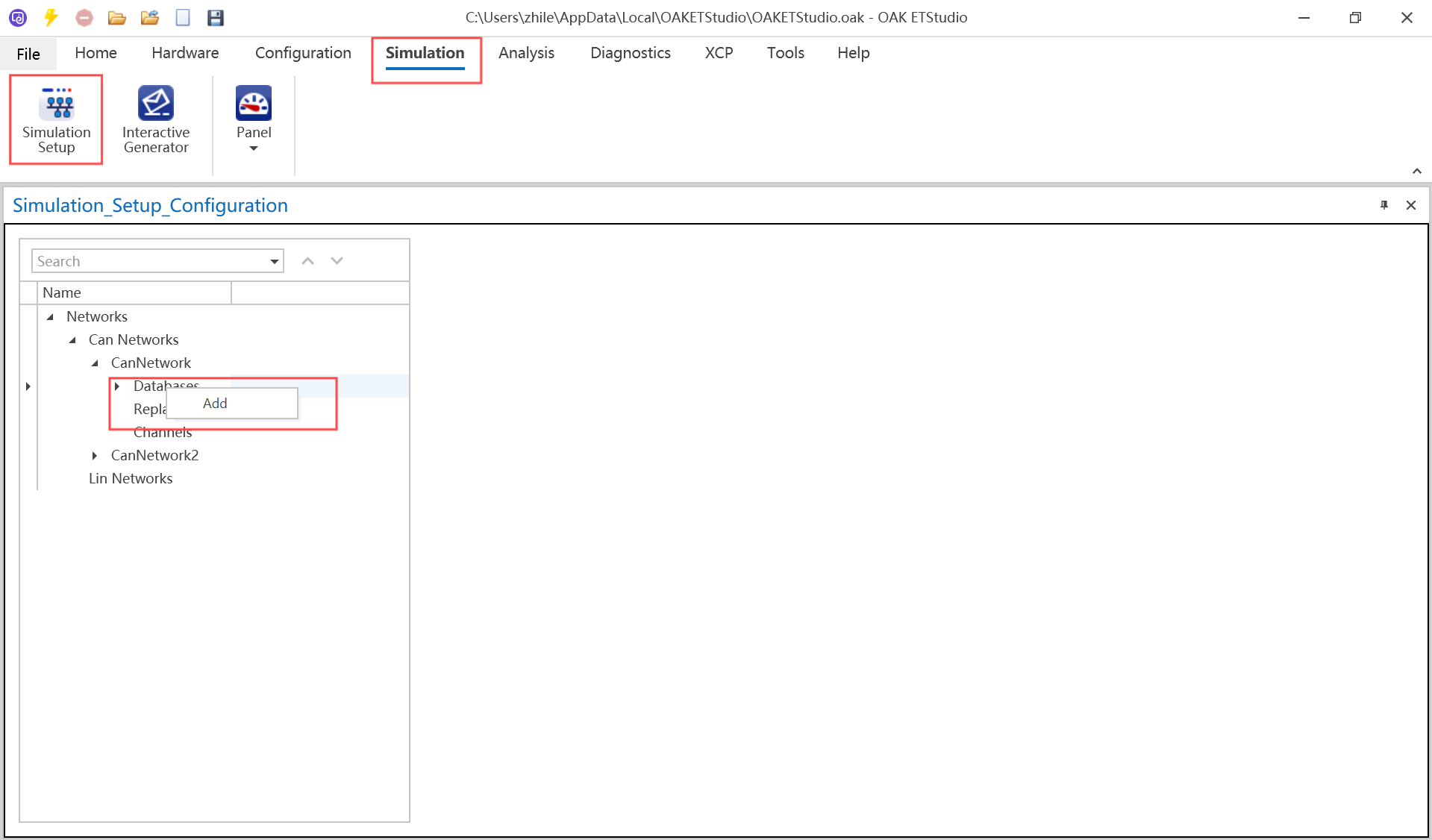

  1. Load DBC file in Simulation Setup:
    alt text alt text alt text

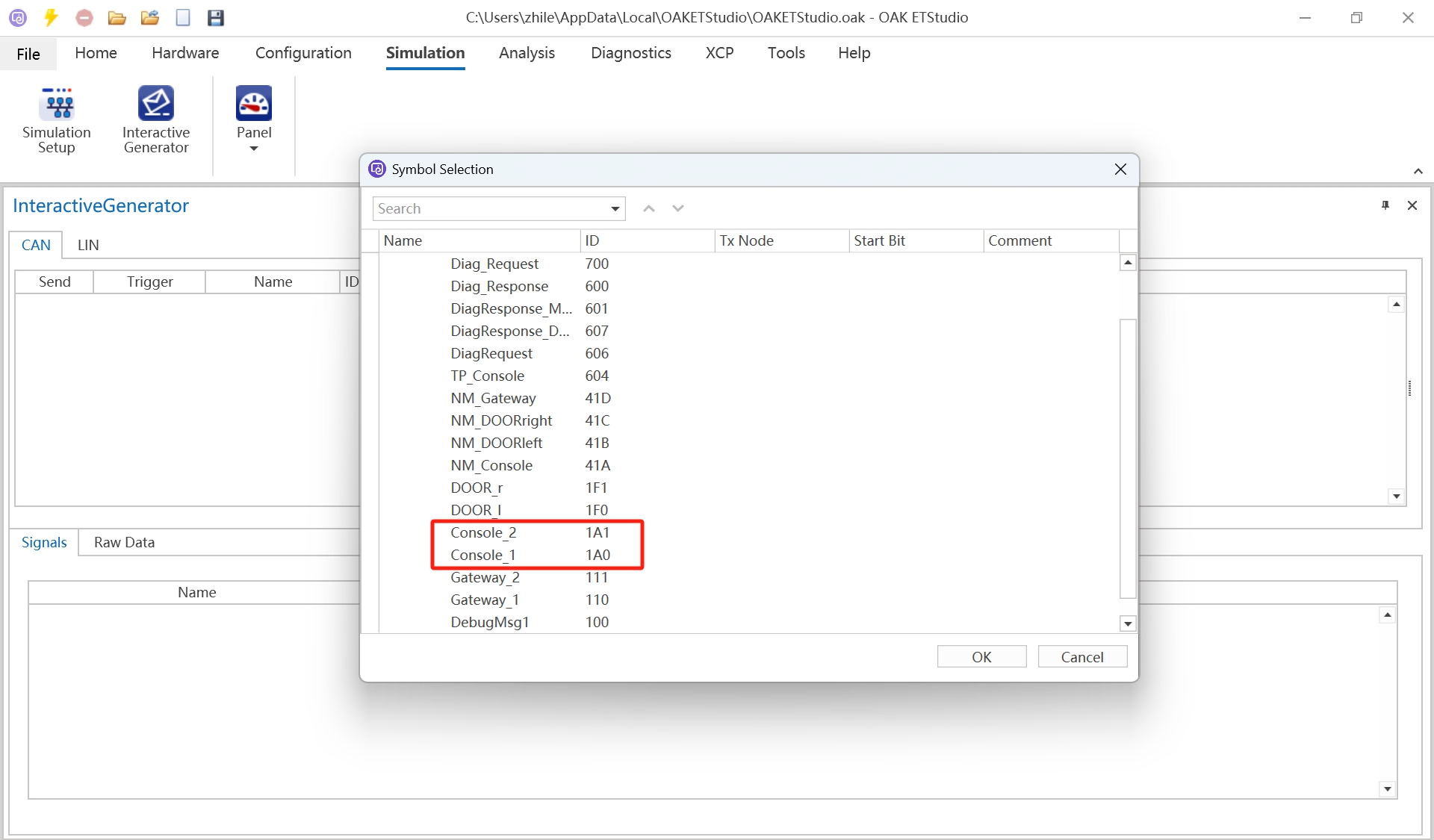

  2. Right-click in IG interface to send CAN messages via context menu:
    alt text
    alt text

  3. Click Start Measurement alt text to begin data acquisition

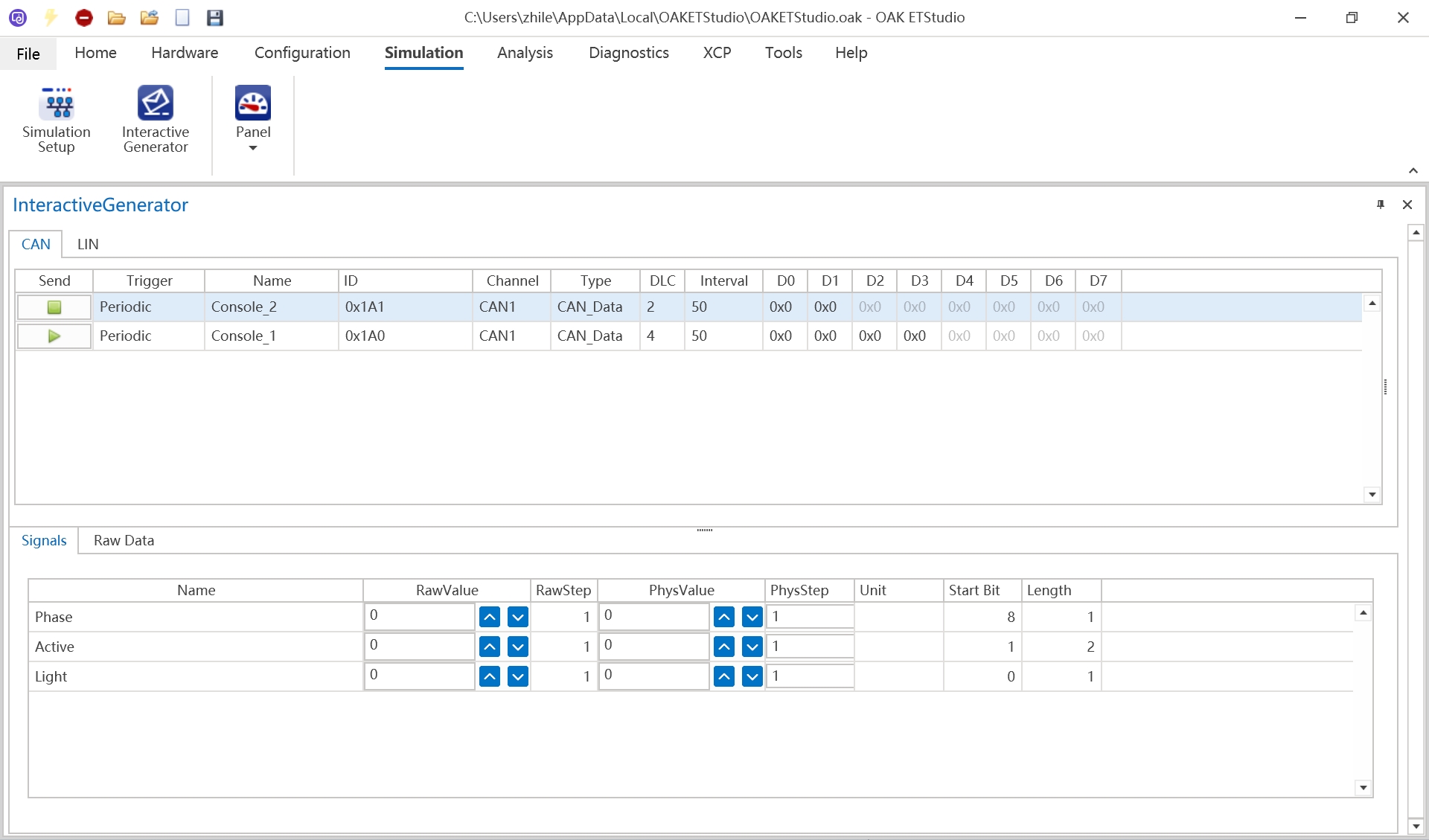

  4. Click green triangle button in IG for periodic CAN transmission:
    alt text

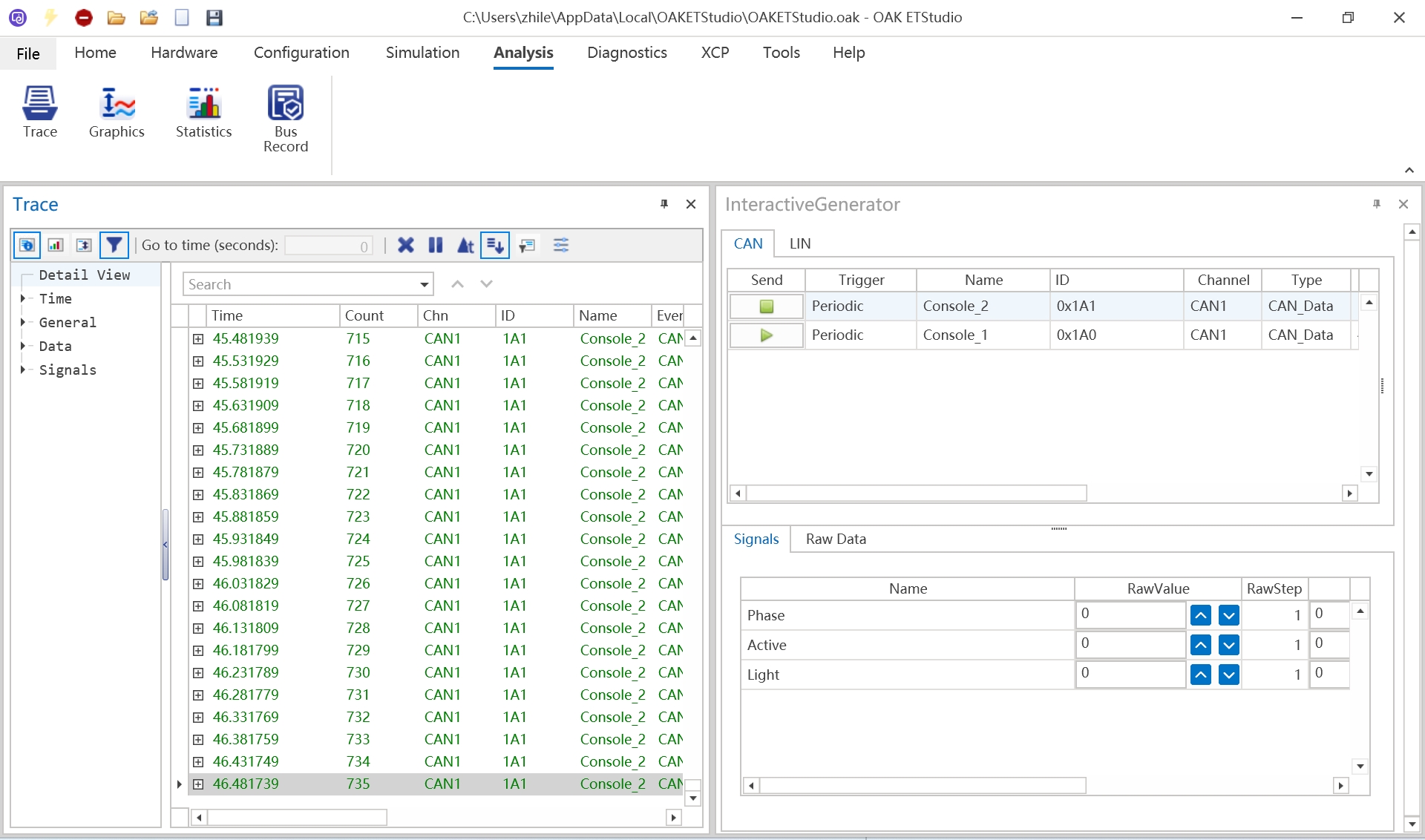

4. Message Monitoring in Trace​

alt text

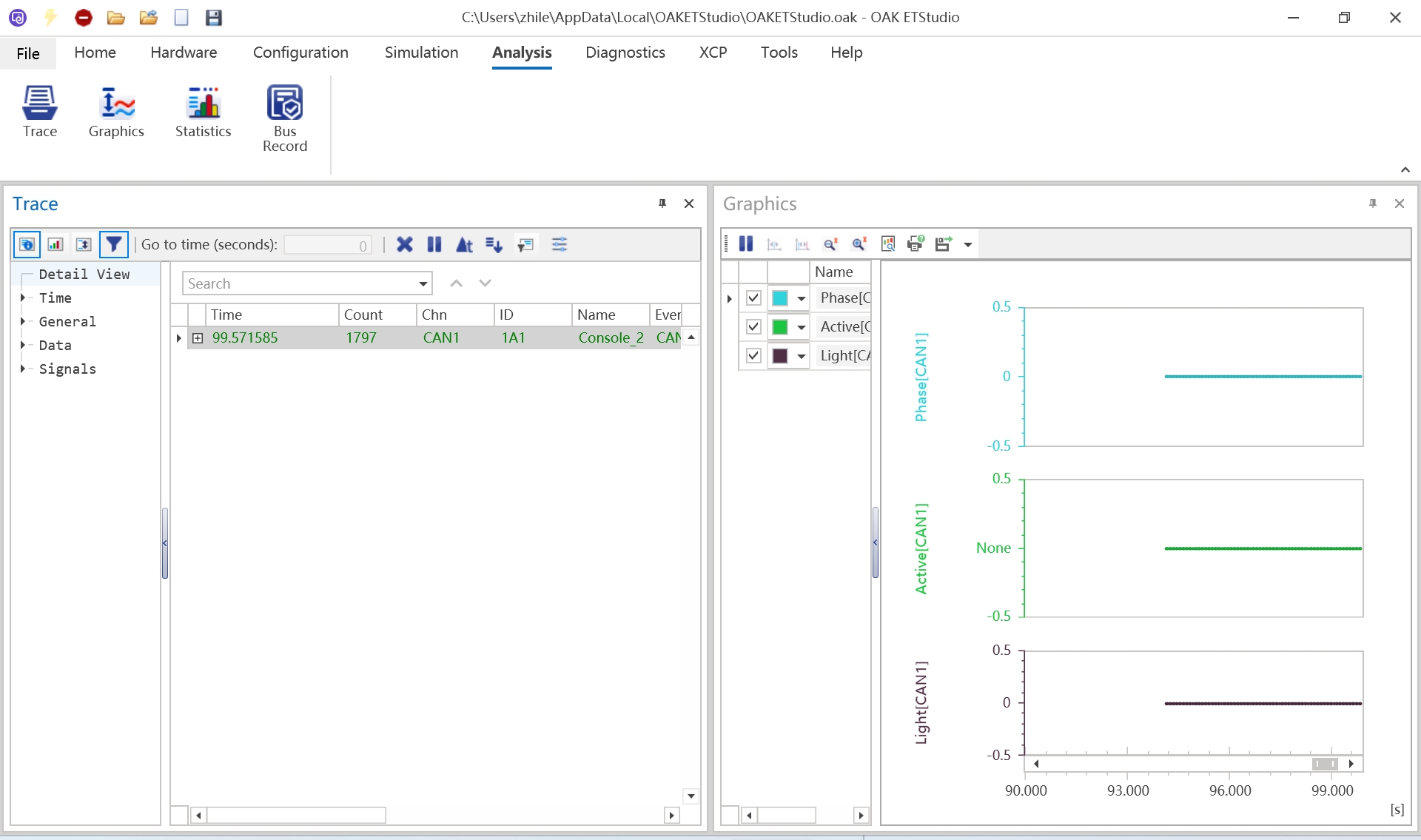

5. Signal Visualization in Graphics​

  • Drag messages from Trace to Graphics for automatic signal display:
    alt text
